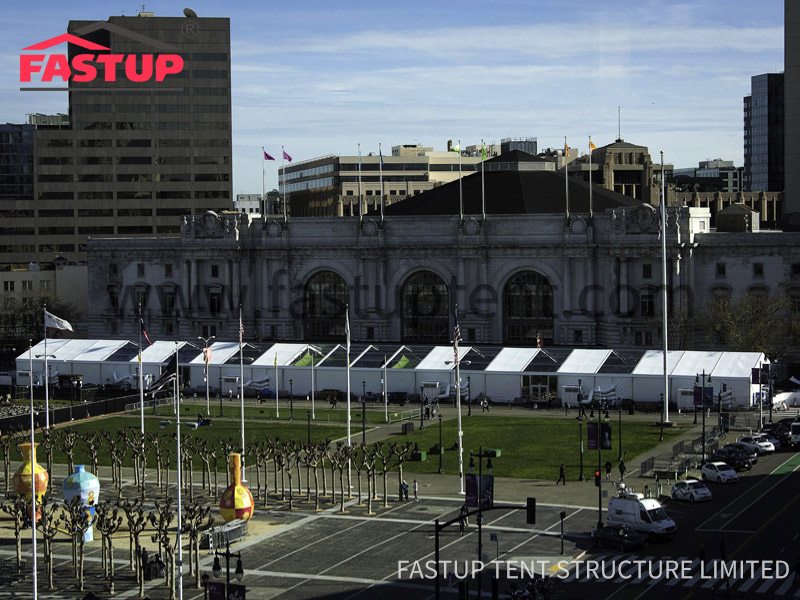

New Design Marquee Trade show Tent In Uk England London Bristol Liverpool Newcastle
Clear span tents are a step up from the traditional frame tent. An assembled framework of beams allow for the white or clear fabric panels to slide through the beams to create a much stronger and quieter tent. There are no interior center poles in the tent. The interior look of the Clear span tent is also much cleaner as fewer buckles and straps are needed to secure the fabric roof to the frame. The tensioning is achieved with the sliding of the fabric panels into the beams. This type of tent allows us to combine white and clear roof panels to create a stunning tent for your outdoor event. It is a good trade show tent for you. Get a quick contact at the end of this page.
Trade show tent all size dimension
|
Fastup Tent |
Width |
Bay Distance (m) |
Side height (m) |
Ridge height (m) |
Main frame profile |
Roof Pitch |
Wind Load (km/h) |
Snow Load (Kn/m2) |
|
SPT3/2300 |
3m |
3m |
2.3m |
2.85m |
60X48mm |
22° |
100 |
0.3 |
|
SPT4/2300 |
4m |
3m |
2.3m |
3.05m |
60X48mm |
22° |
100 |
0.3 |
|
SPT5/2500 |
5m |
3m |
2.5m |
3.45m |
82X48mm |
22° |
100 |
0.3 |
|
SPT6/2500 |
6m |
3m |
2.5m |
3.65m |
82X48mm |
22° |
100 |
0.3 |
|
SPT8/2500 |
8m |
3m |
2.5m |
4.05m |
82X48mm |
22° |
100 |
0.3 |
|
SPT9/2500 |
9m |
3m |
2.5m |
4.2m |
100X48mm |
22° |
100 |
0.3 |
|
SPT10/2500 |
10m |
3m |
2.5m |
4.4m |
100X48mm |
22° |
100 |
0.3 |
|
MPT12/2500 |
12m |
5m |
2.5m |
4.9m |
122X68mm |
22° |
100 |
0.3 |
|
MPT15/3000 |
15m |
5m |
3m |
5.35m |
166X88mm |
18° |
100 |
0.3 |
|
MPT18/3000 |
18m |
5m |
3m |
5.8m |
166X88mm |
18° |
100 |
0.3 |
|
LPT20/4000 |
20m |
5m |
4m |
7.2m |
203X110mm |
18° |
100 |
0.3 |
|
LPT22/4000 |
22m |
5m |
4m |
7.45m |
203X110mm |
18° |
100 |
0.3 |
|
LPT25/4000 |
25m |
5m |
4m |
7.95m |
250X110mm |
18° |
100 |
0.3 |
|
LPT30/4000 |
30m |
5m |
4m |
8.7m |
255X110mm |
18° |
100 |
0.3 |
|
LPT40/4000 |
40m |
5m |
4m |
10.2m |
340X170mm |
18° |
100 |
0.3 |
|
LPT50/4000 |
50m |
5m |
4m |
11.9m |
340X170mm |
18° |
100 |
0.3 |
|
LPT60/4000 |
60m |
5m |
4m |
13.5m |
340X170mm |
18° |
100 |
0.3 |
Material and Quality
|
FRAME |
Hard pressed anodized aluminum alloy 6061/T6 |
|
ROOF COVER |
850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof |
|
SIDEWA |
650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall |
|
CONNECTION |
Hot Dip Gavanized Steel Connector, Aluminum roof connection |
