Double decker tent

Double decker tent

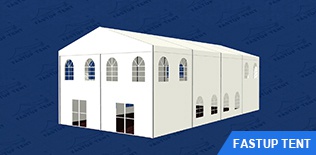

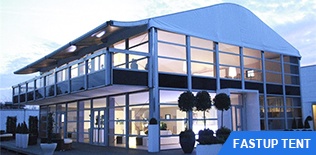

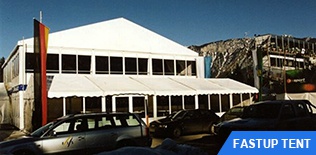

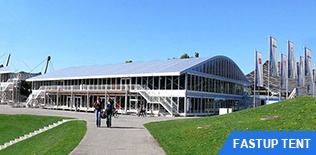

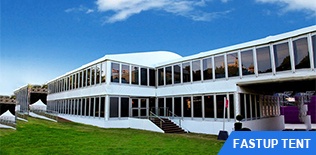

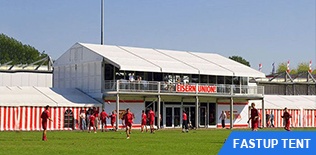

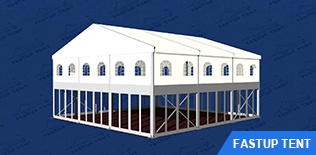

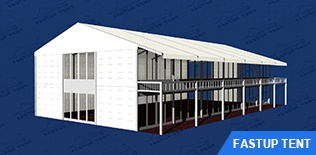

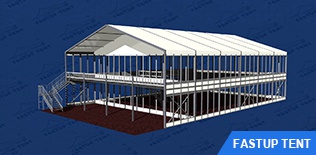

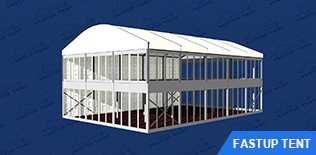

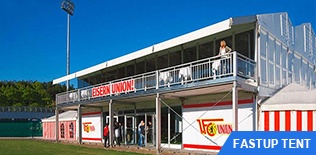

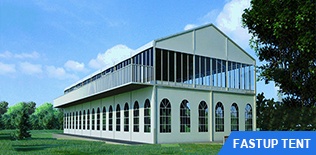

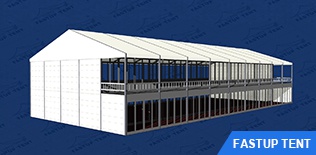

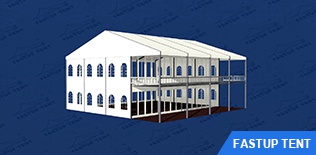

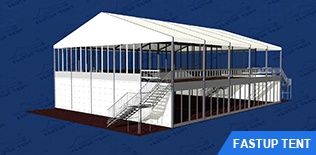

Fastup Tent Double Decker tent can give you faraway scenery in the high storey. Double decker design achieve the ultimate land values, it has doubled space than standard A frame tent. So, it is widely use for sports events as auditorium. And, as there is two levels, it is also widely used on street for events when the space is limited to give more show room, or event room. The width of double decker tent can be 10m,15m 20m or 25m, and length can be any times of 5m bay.
Double Decker tent can achieve the aim that moving the building to different place, in the mean while, it is durable structure can also used as permanent building.

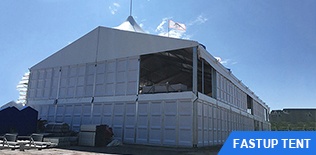

Test Installation in Our Factory

Dimension Available

Fastup Tent Item No. Width (m) Truss-Distance (m) Leg height (m) First floor
(m)
Truss profile size(mm) Second floor(m) Wind Load (km/h) Snow Load (Kn/m2)
AP1-K10/4000 10m 5m 4m/5m 5m+5m 300X120mm P1/P2/P3/P5 120 0.3
AP1-K15/4000 15m 5m 4m/5m 5m+5m+5m 300X120mm P1/P2/P3/P5 120 0.3
AP1-K20/4000 20m 5m 4m/5m 5m+5m+5m+5m 300X120mm P1/P2/P3/P5 120 0.3
AP1-K25/4000 25m 5m 4m/5m 5m+5m+5m+5m+5m 300X120mm P1/P2/P3/P5 120 0.3
AP1-K30/4000 30m 5m 4m/5m 5m+5m+5m+5m+5m+5m 300X120mm P1/P2/P3/P5 120 0.3
AP1-K40/4000 40m 5m 4m/5m 5m+5m+5m+5m+5m+5m+5m 300X120mm P1/P2/P3/P5 120 0.3
AP1-K50/4000 50m 5m 4m/5m 5m+5m+5m+5m+
5m+5m+5m+5m
300X120mm P1/P2/P3/P5 120 0.3
AP1-K60/4000 60m 5m 4m/5m 5+5m+5m+5m+5m+5m
5m+5m+5m+5m+5m+5m
300X120mm P1/P2/P3/P5 120 0.3

Material and Quality


FRAME Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER 850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDE WALL 650g/sqm or 850g/sqm PVC; Glass Pannel sidewall, ABS sidewall, Sandwich Wall
CONNECTION Hot Dipped Galvanized Steel Connector, Aluminum roof connection


Structure Details

Optional Accessories
