High Peak Tent

High Peak Tent

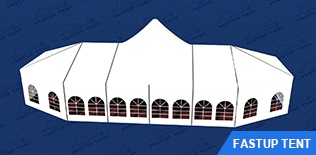

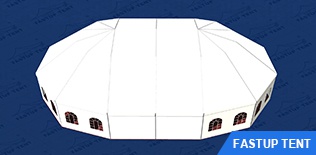

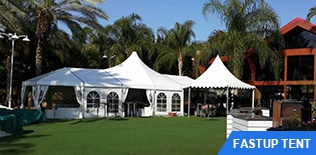

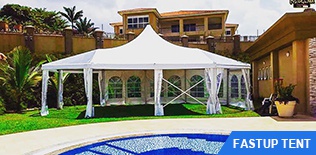

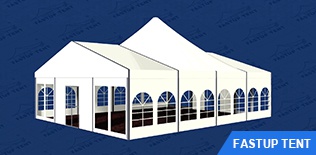

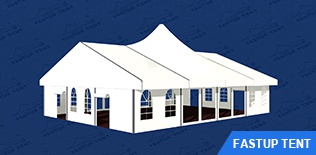

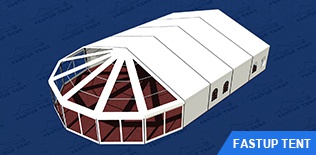

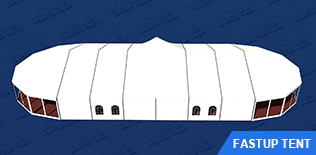

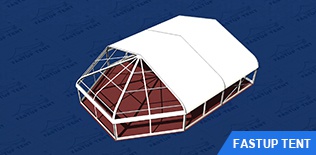

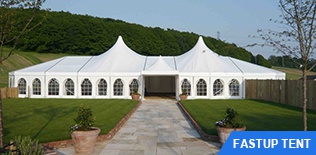

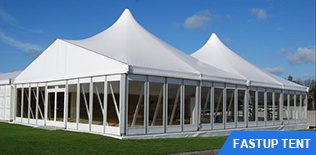

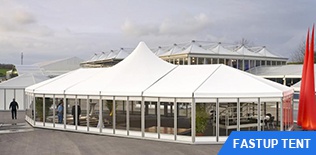

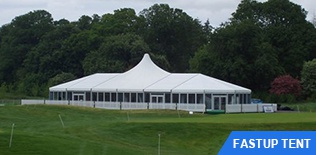

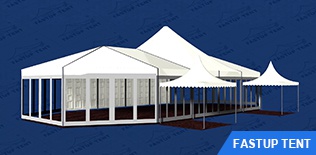

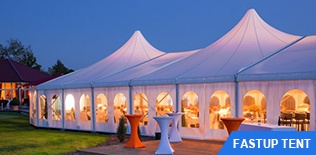

Mixed tent can be said to be a work of art in the tent field, it is combined by three different style: high peak tent, clear span tent and multi side tent. It is a unique and classic structure than common style tent. Mainly used for luxury wedding, high class party, big event, big exhibition.
The available accessories to enhance the appearance for mixed tent: Glass wall, ABS Hard wall, Sandwich wall, Cassette wooden floor system

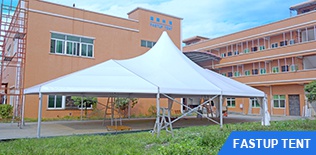

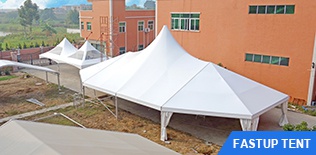

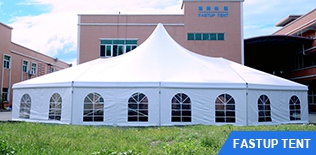

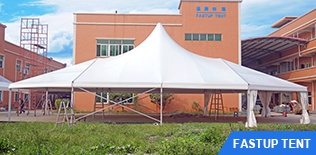

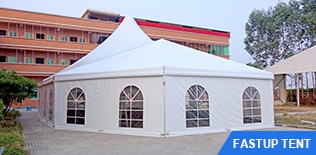

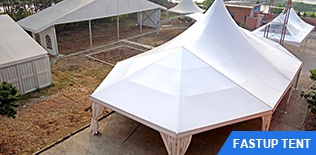

Test Instalation in Our Factory

Dimension Available

Fastup Tent Item No. Width (m) Truss
Distance(m)
Leg
height(m)
Ridge height (m) Truss profile size(mm) Wind Load (km/h) Snow Load (Kn/m2)
CP9-H6/2500
AP7-H6/3000
6m 3m+3m 2.5m 5.13m
5.62m
84X48mm
120x48mm
100 -0.3
CP8-H9/2500 9m 3m+3m 2.5m 6.2m 100X48mm 100 0.3
CP8-H10/2500 10m 3m+3m 2.5m 6.52m 100X48mm 100 0.3
CP6-H12/2500 12m 5m+5m 2.6m 7.08m 120X68mm 100 0.3
CP3-H15/3000
AP3-H15/3000
15m 5m+5m 3m
2.85m
7.99m
7.87m
150X110mm
150x120mm
100 0.3
CP5-H18/3000 18m 5m+5m 3m
2.85m
8.48m
8.36m
150X110mm
150x120mm
100 0.3
CP3-H20/4000
AP3-H20/4000
20m 5m+5m 4m 9.81m
9.59
200X110mm
200x120mm
100 0.3

Material and Quality


FRAME Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER 850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDE WALL 650g/sqm or 850g/sqm PVC; Glass Pannel sidewall, ABS sidewall, Sandwich Wall
CONNECTION Hot Dipped Galvanized Steel Connector, Aluminum roof connection

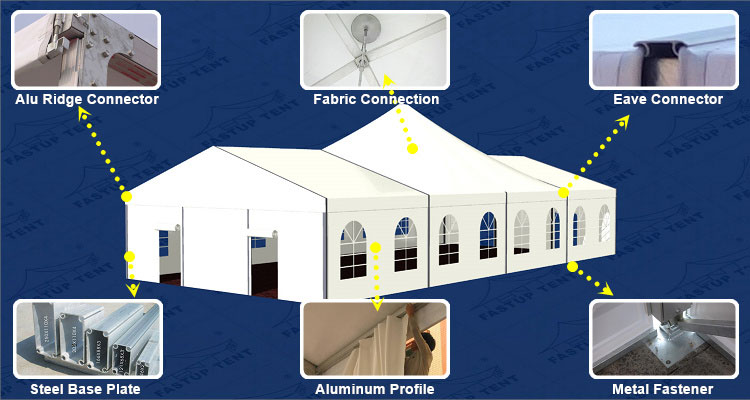

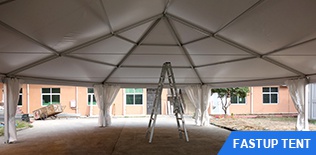

Structure Details

Optional Accessories
