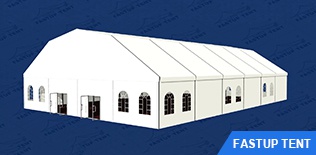

Polygonal tent

Polygonal tent

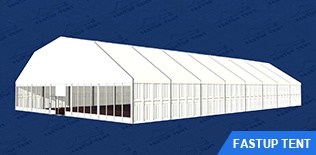

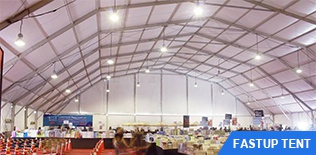

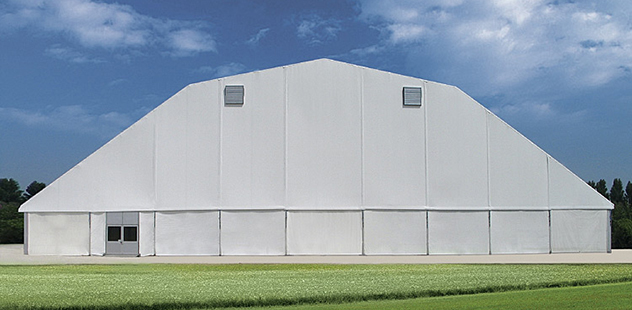

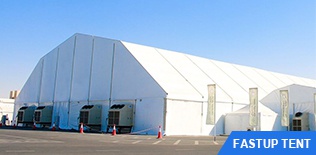

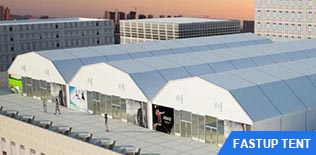

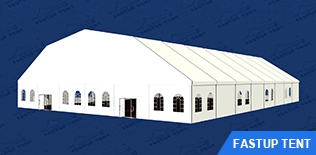

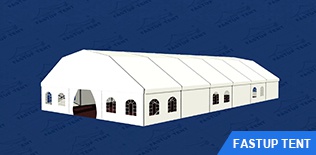

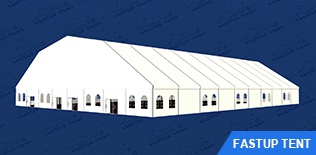

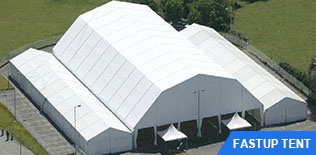

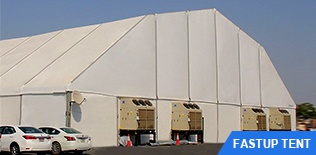

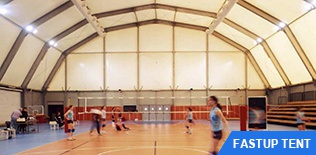

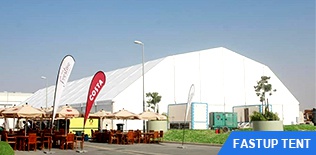

 Polygonal Tent has more advanced and strong roof shape. The polygonal roof design makes the tent much stronger for wind. And, its top is more capacious for sports like tennis court or basket ball, and warehouse for storage. So, it is a ideal choice Sports Halls tent and warehouse tent. The span available are 15m, 20m, 30m, 40m, the length has no limit in 5m each bay. Fastup Tent Polygonal Tent use Aluminium6061/T6 for main frame, it is very durable and never rust. The roof is blockout double PVC coated fabric that has SGS fire retardant certificate.  It is widely used as tennis court tent, basketball tent, football tent, ice skating tent, warehouse tent, storage tent etc.

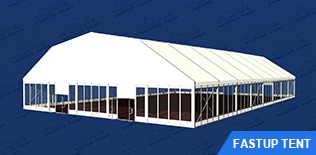

Accessories available for polygonal tent: lining & curtain, Sandwich wall, glass wall, glass door, ABS panel wall, Cassette wooden flooring system, ground anchor.

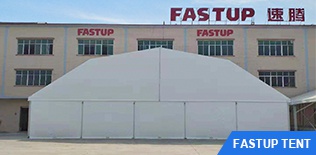

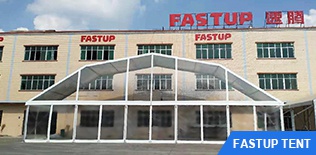

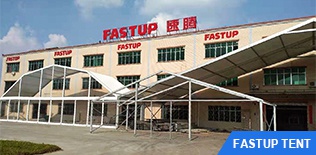

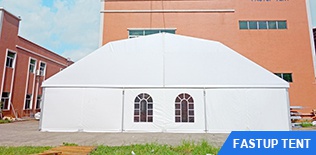

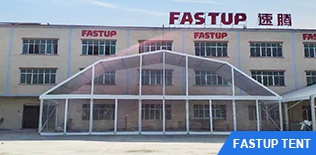

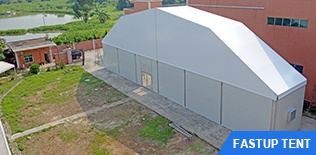

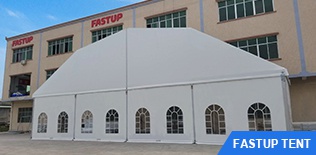

Test Instalation in Our Factory

Dimension Available

Fastup Tent Item No. Width (m) Truss-Distance (m) Leg
height (m)
Ridge height (m) Truss profile size(mm) Wind Load (km/h) Snow Load (Kn/m2)
CP6-G10/3000 10m 5m 3m/4m 6.04m/7.04m 120X68mm
100 0.4
AP5-G10/3000 10m 5m 3m/4m 6.04m/7.04m 150X120mm 100 0.4
CP5-G15/3000 15m 5m 3m/4m 6.35m/7.35m 150X110mm 100 0.4
AP5-G15/3000 15m 5m 3m/4m 6.35m/7.35m 150X120mm 100 0.4
CP3-G20/4000 20m 5m 4m/5m 8.2m/9.2m 200X110mm 100 0.4
AP3-G20/4000 20m 5m 4m/5m 8.2m/9.2m 200X120mm 100 0.4
CP2-G25/4000 25m 5m 4m/5m 9m/10m 250X110mm 100 0.4
AP2-G25/4000 25m 5m 4m/5m 9m/10m 250X120mm 100 0.4
CP2-G30/4000 30m 5m 4m/5m 10m/11m 250X110mm 100 0.4
AP5-G30/4000 30m 5m 4m/5m 10m/11m 250X120mm 100 0.4
BP1-G40/4000 40m 5m 4m/5m 12m/13m 300X120mm 100 0.4
AP1-G40/4000 40m 5m 4m5m/6m 12m13m/14m 300X120mm 100 0.4
BPE1-G50/4000 50m 5m 4m/5m 14m/15m 350X120mm 100 0.4
APE1-G50/4000 50m 5m 4m5m/6m 14m/15m/16m 350X120mm 100 0.4

Material and Quality

FRAME Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER 850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDE WALL 650g/sqm or 850g/sqm PVC; Glass Pannel sidewall, ABS sidewall, Sandwich Wall
CONNECTION Hot Dipped Galvanized Steel Connector, Aluminum roof connection

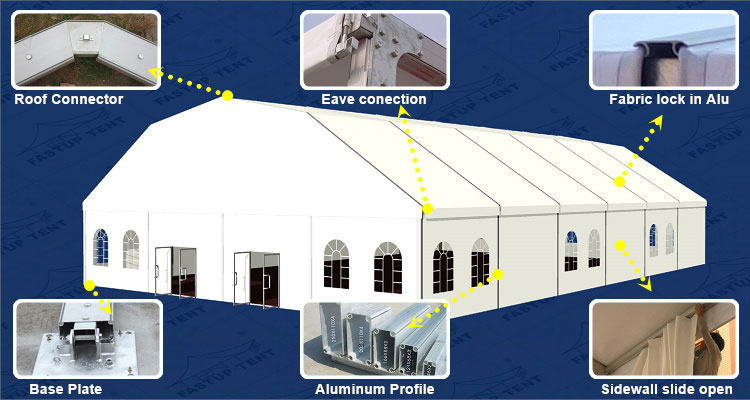

Structure Details

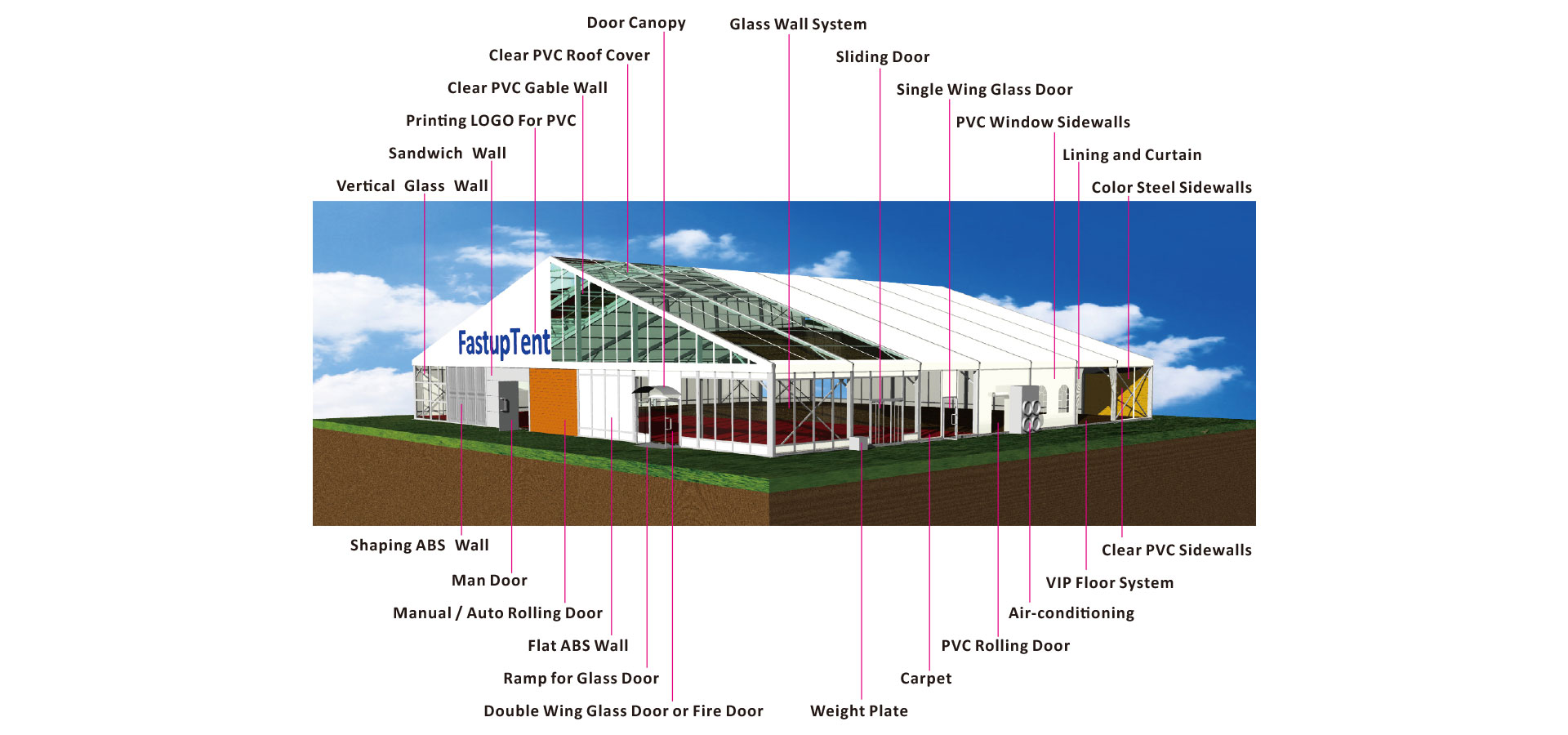

Optional Accessories
