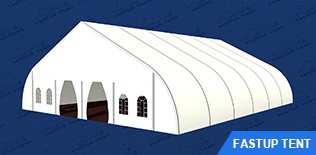

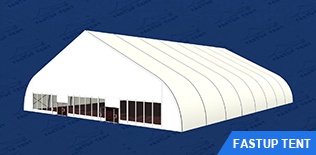

Curved tent

Curved tent

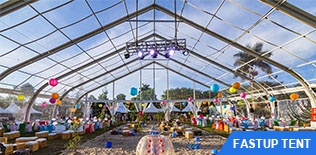

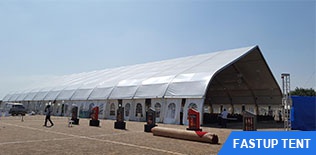

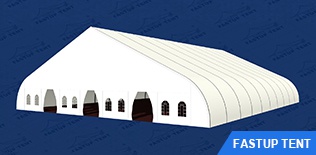

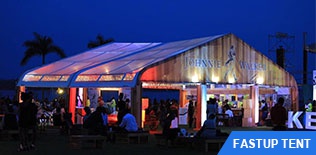

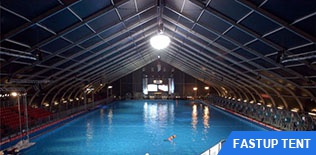

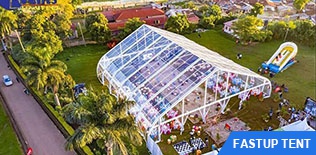

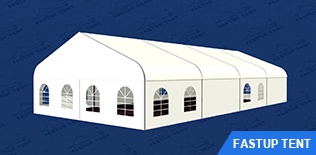

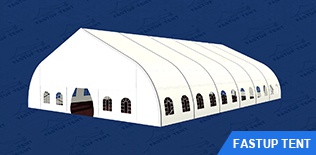

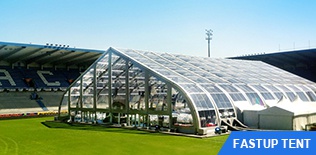

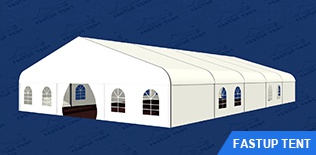

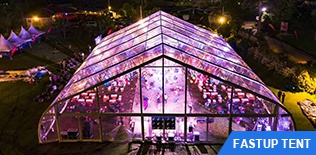

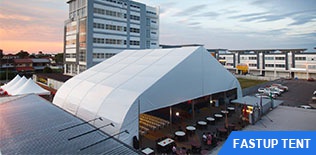

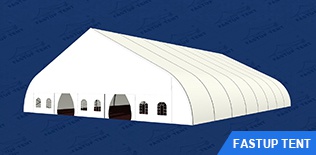

 Curve tent is a new creative design base on standard A frame clear span tent. Width dimension varies from 10m to 40m; length can be any times of continuous 5m bay sections. The roof beam is curved shape which makes the tent stronger for snow load and rain load on roof cover, and as strong as to withstand 120 KM/h wind speed and 0.4KN/M2 snow loading. Fastup Curve tent is very easy and convenient to assemble, dismantle, and move to different place. Therefore, besides for permanent building likes big exhibiton hall tent, hotel tent, tennis court tent, swimming pool tent, Curved tent can also use for renting business as curve event tent, curve party tent, curve wedding tent ect.

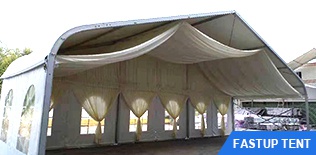

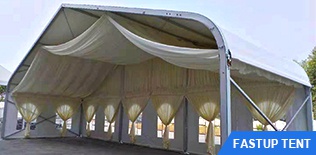

Accessories available for curve tent: lining & curtain, Cassette wooden flooring system, ground anchor.

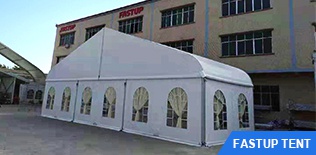

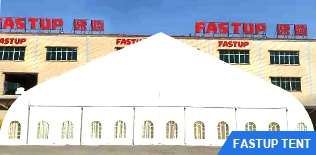

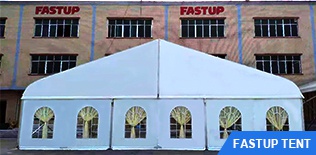

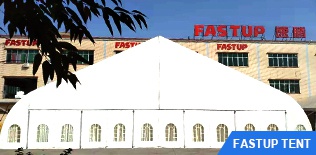

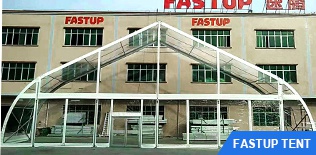

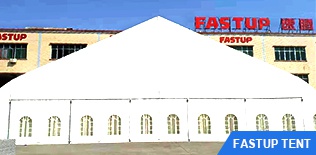

Test Instalation in Our Factory

Dimension Available

Fastup Tent Item No.  Width (m) Truss-Distance (m) Leg
height (m)
Ridge height  (m) Truss profile size(mm)  Roof   Pitch Wind
Load
(km/h)
Snow Load (Kn/m2)
CP6-C10/3000   10m 5m 3m/4m 5.17m/6.17m 120X68mm
110X110mm
  18°    100 0.3
CP6-C12/3000   12m 5m 3m/4m 5.5m/6.5m 120X68mm
110X110mm
  18°   100 0.3
CP5-C15/3000   15m 5m 3m/4m 5.99m/6.99m 150X110mm   18°   100 0.3
CP3-C20/4000   20m 5m 4m 8.92m 200X110mm   18°   100 0.4
CP2-C25/4000    25m 5m 4m 10.09m 250X110mm    18°    100 0.4
CP2-C30/4000   30m 5m 4m 11.25m 250X110mm   18°    100 0.4
AP1-C40/4000   40m 5m 4m 13.65m 300X120mm    18°   100 0.4
APE1-C50/4000   50m 5m 4m 15.97m 350X120mm   18°   100 0.4

Material and Quality


FRAME Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER 850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDE WALL 650g/sqm or 850g/sqm PVC; Glass Pannel sidewall, ABS sidewall, Sandwich Wall
CONNECTION Hot Dipped Galvanized Steel Connector, Aluminum roof connection

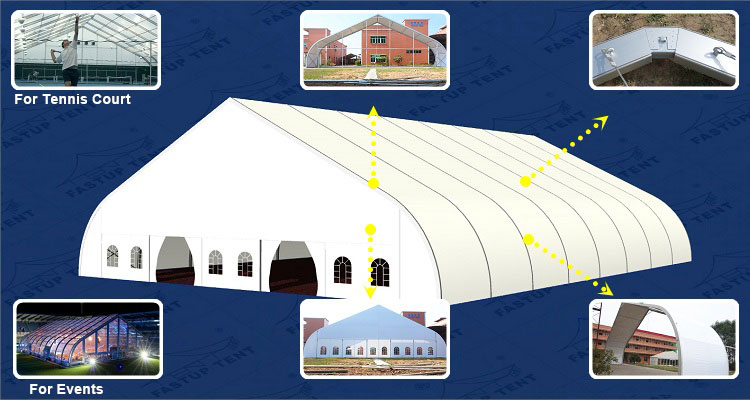

Structure Details

Optional Accessories
