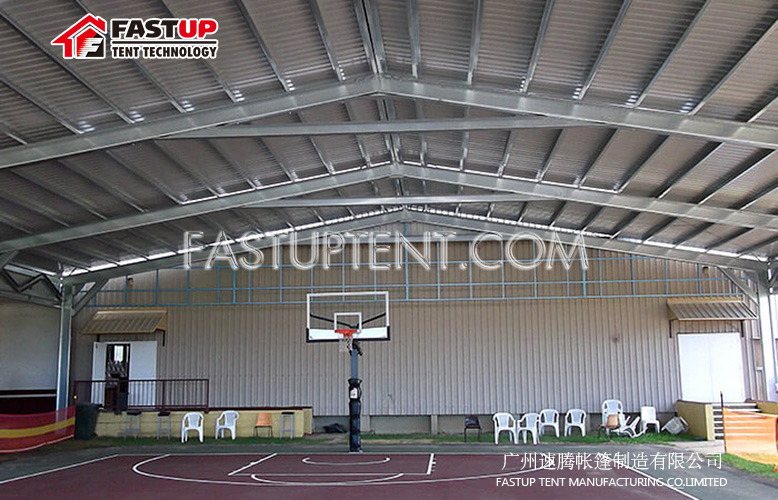

China Manufacturer Event Tent For Basketball in 12m
FASTUP Sports event Tent provides safest and most cost effective solutions for Indoor Basketball court cover, football court cover, swimming pool cover and ice rink etc. The high roof of our sports tent offers large space for variety sporting events. And most of all, our structures are relocatable. They can be easily set up whenever and wherever the sporting event been hold.
We offer custom design. And even you can join the design by giving me whatever you want to make your tent unique. We can show you technical sketch and 3D visualization to confirm with you before production.FASTUP TENT has over 10 years of experience and works in partnership with the world’s most iconic sporting organizations, cultural event organizers, venues and brand owners including the Olympic Games, Asian Games, Formula 1 Grand Prix, WTA etc. Our experienced team provides bespoke solutions which maintain clients’ brand consistency and quality of delivery the world over.
Tent for basketball all size dimension
|
Fastup Tent
Width
Bay Distance (m)
Side height (m)
Ridge height (m)
Main frame profile
Roof Pitch
Wind Load (km/h)
Snow Load (Kn/m2)
SPT3/2300
3m
3m
2.5m
3.1m
100X48mm
22°
80
0.3
SPT4/2300
4m
3m
2.5m
3.3m
100X48mm
22°
80
0.3
SPT5/2500
5m
3m
2.5m
3.5m
100X48mm
22°
80
0.3
SPT6/2500
6m
3m
2.5m
3.7m
100X48mm
22°
80
0.3
SPT8/2500
8m
3m
2.5m
4.1m
100X48mm
22°
80
0.3
SPT9/2500
9m
3m
2.5m
4.3m
100X48mm
22°
80
0.3
SPT10/2500
10m
5m
3m
4.65m
122X68mm
22°
100
0.3
MPT12/2500
12m
5m
3m
5m
122X68mm
22°
100
0.3
MPT15/3000
15m
5m
3m
5.35m
150X110mm
18°
100
0.3
MPT18/3000
18m
5m
3m
5.8m
150X110mm
18°
100
0.3
LPT20/4000
20m
5m
4m
7.2m
204X112mm
18°
110
0.3
LPT22/4000
22m
5m
4m
7.45m
204X112mm
18°
100
0.3
LPT25/4000
25m
5m
4m
7.95m
204X112mm
18°
100
0.3
LPT30/4000
30m
5m
4m
8.92m
300X120mm
18°
100
0.3
LPT40/4000
40m
5m
4m
10.54m
300X120mm
18°
100
0.3
LPT50/4000
50m
5m
4m
12.17m
350X120mm
18°
120
0.3
LPT60/4000
60m
5m
4m
13.94m
420X120mm
18°
100
0.3
|
Material and Quality
|
FRAME |
Hard pressed anodized aluminum alloy 6061/T6 |
|
ROOF COVER |
850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof |
|
SIDEWA |
650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall |
|
CONNECTION |
Hot Dip Gavanized Steel Connector, Aluminum roof connection |

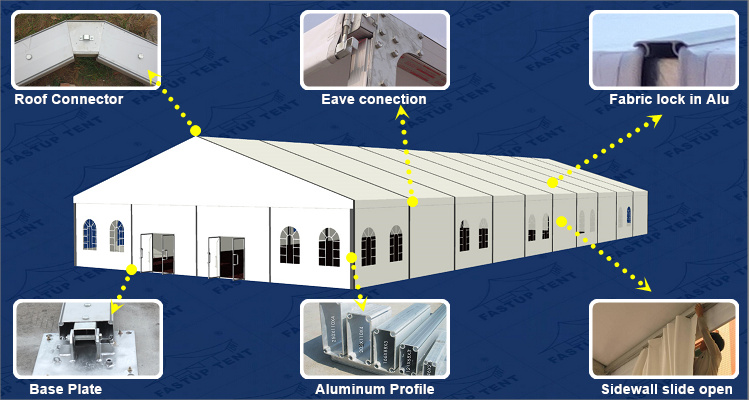

Structure details
