Guangzhou Fastup Tent Manufacturing Co., Ltd.

Polygaonal tent for basketball in size 15x20m 15m x 20m 15 by 20 20x15 20m x 15m

Polygaonal tent for basketball in size 15x20m 15m x 20m 15 by 20 20x15 20m x 15m
Fastup Aluminum Tent inner height of the arched polygonal tent width is more than 10 m and their length can be extended by 3/5 m. These are suitable for events that require a bigger height like tennis, basketball, volleyball because of a bigger width and height is needed.

During the design of the structure we always keep in mind the requests of the clients, without neglecting static load. Fastup Tent can help you enjoy your sports events inside the tent.

Tent for basketball all size dimension

Fastup Tent Item No.	Width (m)	Bay Distance (m)	Side height (m)	Ridge height (m)	Main frame profile (mm)	Roof Pitch	Wind Load (km/h)	Snow Load (Kn/m²)
SPT3/2300	3m	3m	2.5m	3.1m	100X48mm	22°	80	0.3
SPT4/2300	4m	3m	2.5m	3.3m	100X48mm	22°	80	0.3
SPT5/2500	5m	3m	2.5m	3.5m	100X48mm	22°	80	0.3
SPT6/2500	6m	3m	2.5m	3.7m	100X48mm	22°	80	0.3
SPT8/2500	8m	3m	2.5m	4.1m	100X48mm	22°	80	0.3
SPT9/2500	9m	3m	2.5m	4.3m	100X48mm	22°	80	0.3
SPT10/2500	10m	5m	3m	4.65m	122X68mm	22°	100	0.3
MPT12/2500	12m	5m	3m	5m	122X68mm	22°	100	0.3
MPT15/3000	15m	5m	3m	5.35m	150X110mm	18°	100	0.3
MPT18/3000	18m	5m	3m	5.8m	150X110mm	18°	100	0.3
LPT20/4000	20m	5m	4m	7.2m	204X112mm	18°	110	0.3
LPT22/4000	22m	5m	4m	7.45m	204X112mm	18°	100	0.3
LPT25/4000	25m	5m	4m	7.95m	204X112mm	18°	100	0.3
LPT30/4000	30m	5m	4m	8.92m	300X120mm	18°	100	0.3
LPT40/4000	40m	5m	4m	10.54m	300X120mm	18°	100	0.3
LPT50/4000	50m	5m	4m	12.17m	350X120mm	18°	120	0.3
LPT60/4000	60m	5m	4m	13.94m	420X120mm	18°	100	0.3

Material and Quality

FRAME	Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER	850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDEWA	650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall
CONNECTION	Hot Dip Gavanized Steel Connector, Aluminum roof connection

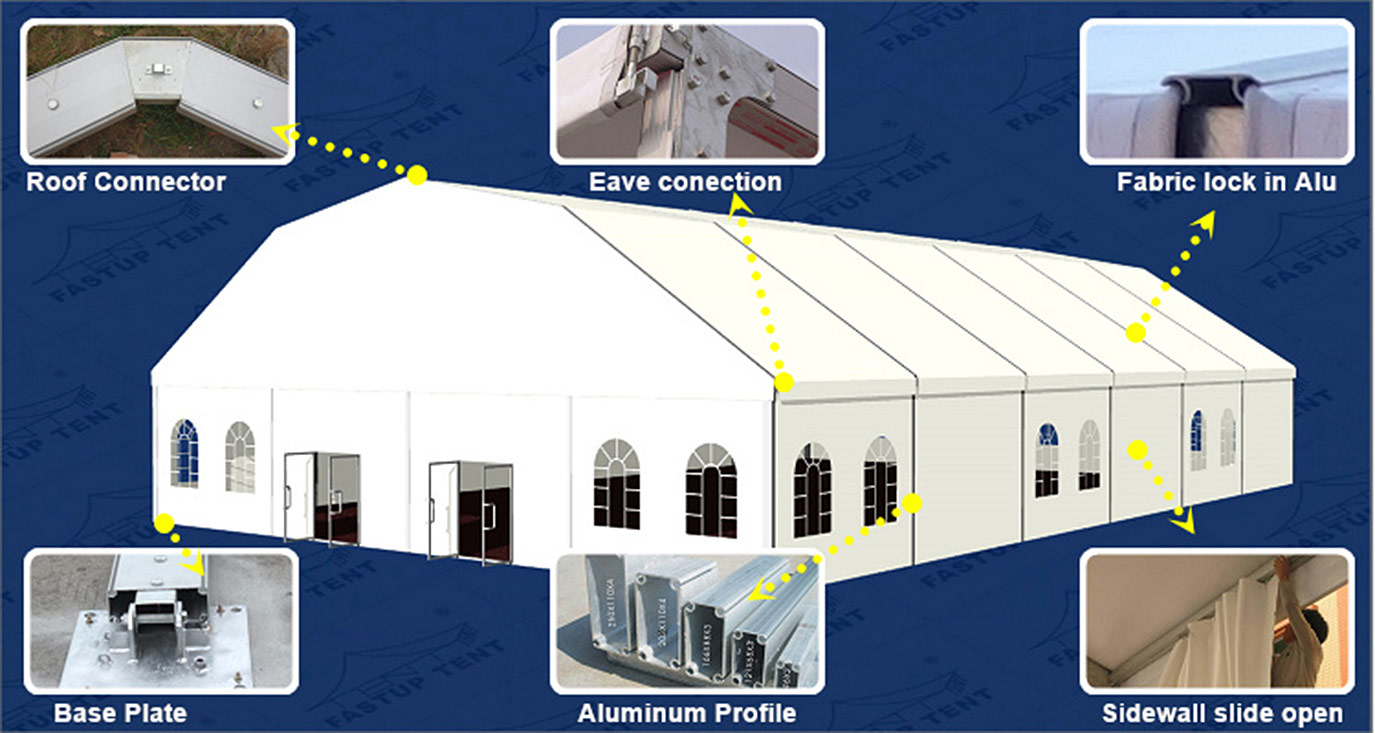

Structuve details
