High Quality Curve Marquee Tent for Tennis In Pakistan Karachi Lahore Islamabad

High Quality Curve Marquee Tent for Tennis In Pakistan Karachi Lahore Islamabad

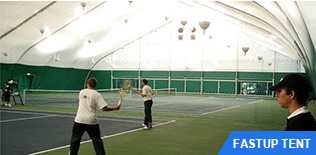

FUSTUP tennis tents are built to withstand extreme climates with a hyperbolic dome design! Our tennis tents are sun-resistant and constructed with an 850gsm blackout PVC roof, double-layer ventilated mesh walls for faster airflow; water drains in seconds to prevent ceiling collapse! Our curved tent frames are available in 10m and 40m widths and can be made to almost any desired length in 5m increments.
To find out more about how we can help organize your tennis tent, call or email us.

All size dimension

Fastup Tent Item No.	Width (m)	Bay distance (m)	Side height (m)	Ridge height (m)	Main frame profile (mm)	Wind load (km/h)	Snow load (KN/m²)
CRV10/3000	10m	5m	3m	5m	122x68mm	100	0.4
CRV12/3000	12m	5m	3m	5.4m	122x68mm	100	0.4
CRV15/3000	15m	5m	3m	5.35m	166x88mm	100k	0.4
CRV20/4000	20m	5m	4m	9.1m	203x110mm	100	0.4
CRV25/4000	25m	5m	4m	10.3m	250x111mm	100	0.4
CRV30/4000	30m	5m	4m	11.5m	256x113mm	100	0.4
CRV40/4000	40m	5m	4m	13.8m	300x125mm	100	0.4

Material and Quality

FRAME	Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER	850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDEWA	650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall
CONNECTION	Hot Dip Gavanized Steel Connector, Aluminum roof connection
