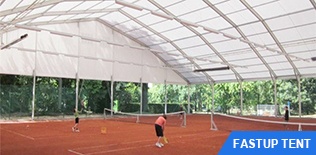

Permanent Curve Marquee Tent for Tennis from China

Permanent Curve Marquee Tent for Tennis from China
FASTUP TENT's curved tent is a new creative design based on the standard A-shaped clear span tent. Width sizes range from 10 meters to 40 meters; length can be any multiple of 5-meter continuous units. The roof beam is a curved shape. Very easy to assemble, disassemble and move to different places. ! The curved canopy is superimposed with a honeycomb anti-UV film, ‌blocking 95% of UV rays + reflecting heat dissipation‌, waterproof and fireproof, and only high-quality materials are produced.

If you have any needs, please contact our friendly and experienced team to provide advice for planning your event. Quality, service, reliability and ability are the cornerstones of FASTUP TENT to become a trusted partner for your event!

All size dimension

Fastup Tent Item No.	Width (m)	Bay distance (m)	Side height (m)	Ridge height (m)	Main frame profile (mm)	Wind load (km/h)	Snow load (KN/m²)
CRV10/3000	10m	5m	3m	5m	122x68mm	100	0.4
CRV12/3000	12m	5m	3m	5.4m	122x68mm	100	0.4
CRV15/3000	15m	5m	3m	5.35m	166x88mm	100k	0.4
CRV20/4000	20m	5m	4m	9.1m	203x110mm	100	0.4
CRV25/4000	25m	5m	4m	10.3m	250x111mm	100	0.4
CRV30/4000	30m	5m	4m	11.5m	256x113mm	100	0.4
CRV40/4000	40m	5m	4m	13.8m	300x125mm	100	0.4

Material and Quality

FRAME	Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER	850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDEWA	650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall
CONNECTION	Hot Dip Gavanized Steel Connector, Aluminum roof connection
