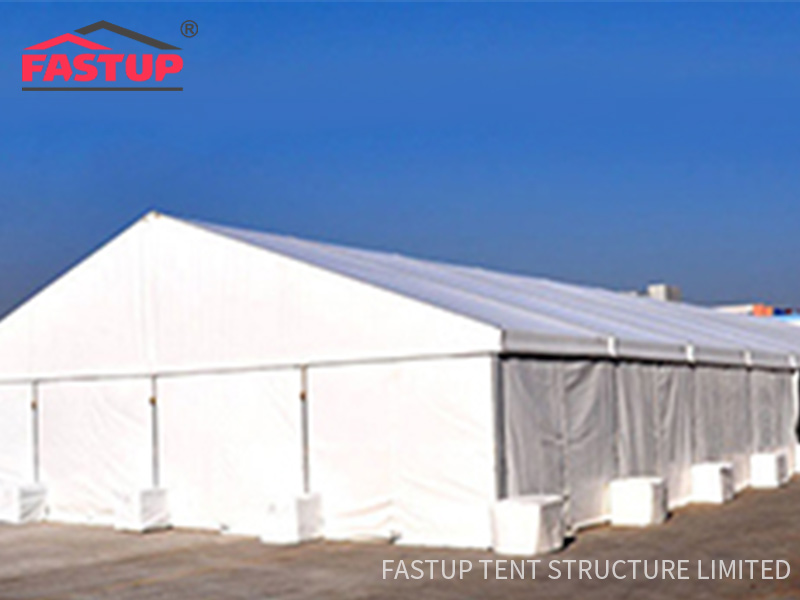

worth your possession Rugged temporary workshop tents
FUSTUP tents provide you with a stable and sturdy temporary tent with a span. It is composed of a modular structure. The material is aluminum alloy 6061/T6 as the main frame, which is very durable and never rusts. The roof is made of double-layer PVC fabric, which is sturdy and fireproof, resistant to level 10 gale and rainproof. It can achieve a span of 3 meters to 60 meters, with unlimited length. Each 3m or 5m compartment can accommodate thousands of people.
FUSTUP tents has 18 years of experience in manufacturing tents, focusing on providing high-quality tents and obtaining multiple creation patents. It is your loyal partner.
All size dimension
|
Fastup Tent |
Width |
Bay Distance (m) |
Side height (m) |
Ridge height (m) |
Main frame profile |
Roof Pitch |
Wind Load (km/h) |
Snow Load (Kn/m2) |
|
SPT3/2300 |
3m |
3m |
2.5m |
3.1m |
100X48mm |
22° |
80 |
0.3 |
|
SPT4/2300 |
4m |
3m |
2.5m |
3.3m |
100X48mm |
22° |
80 |
0.3 |
|
SPT5/2500 |
5m |
3m |
2.5m |
3.5m |
100X48mm |
22° |
80 |
0.3 |
|
SPT6/2500 |
6m |
3m |
2.5m |
3.7m |
100X48mm |
22° |
80 |
0.3 |
|
SPT8/2500 |
8m |
3m |
2.5m |
4.1m |
100X48mm |
22° |
80 |
0.3 |
|
SPT9/2500 |
9m |
3m |
2.5m |
4.3m |
100X48mm |
22° |
80 |
0.3 |
|
SPT10/2500 |
10m |
5m |
3m |
4.65m |
122X68mm |
22° |
100 |
0.3 |
|
MPT12/2500 |
12m |
5m |
3m |
5m |
122X68mm |
22° |
100 |
0.3 |
|
MPT15/3000 |
15m |
5m |
3m |
5.35m |
150X110mm |
18° |
100 |
0.3 |
|
MPT18/3000 |
18m |
5m |
3m |
5.8m |
150X110mm |
18° |
100 |
0.3 |
|
LPT20/4000 |
20m |
5m |
4m |
7.2m |
204X112mm |
18° |
110 |
0.3 |
|
LPT22/4000 |
22m |
5m |
4m |
7.45m |
204X112mm |
18° |
100 |
0.3 |
|
LPT25/4000 |
25m |
5m |
4m |
7.95m |
204X112mm |
18° |
100 |
0.3 |
|
LPT30/4000 |
30m |
5m |
4m |
8.92m |
300X120mm |
18° |
100 |
0.3 |
|
LPT40/4000 |
40m |
5m |
4m |
10.54m |
300X120mm |
18° |
100 |
0.3 |
|
LPT50/4000 |
50m |
5m |
4m |
12.17m |
350X120mm |
18° |
120 |
0.3 |
|
LPT60/4000 |
60m |
5m |
4m |
13.94m |
420X120mm |
18° |
100 |
0.3
|
Material and Quality
|
FRAME |
Hard pressed anodized aluminum alloy 6061/T6 |
|
ROOF COVER |
850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof |
|
SIDEWA |
650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall |
|
CONNECTION |
Hot Dip Gavanized Steel Connector, Aluminum roof connection |
Structure details
