Looking for a Temporary Workshop Tent Solution in Pakistan Karachi

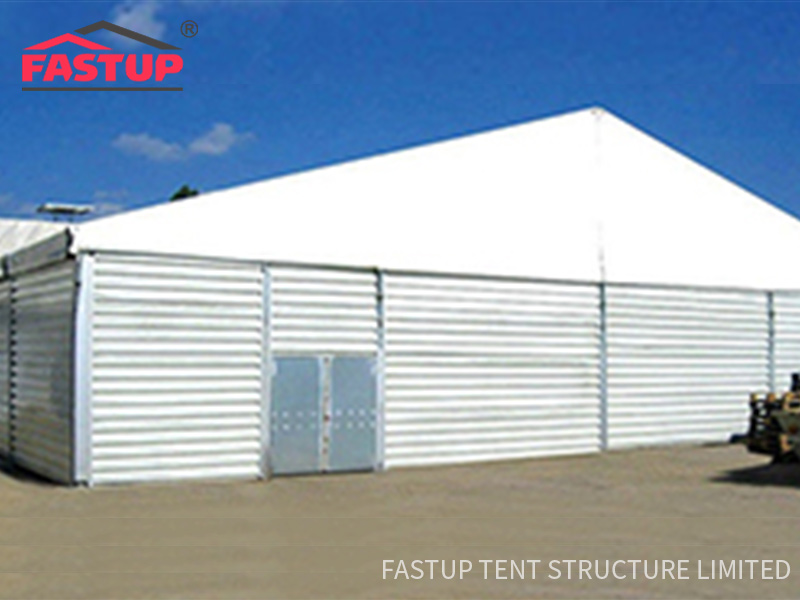

FUSTUP TENT provides movable steel structure temporary workshop tents for Karachi, Pakistan, which can use idle land space as storage tents to provide storage space. Its structural PVC fabric or ABS wall is used as the side wall, which is widely used in industrial logistics, cultural and sports tourism, military disaster relief and other fields. Compared with traditional workshop buildings, it has the advantages of recyclable materials, green ecological environment protection, flexible and convenient structure, and easy installation and disassembly. In addition, the construction cost of building these storage tents is low, which has good economic benefits.
All size dimension
|
Fastup Tent |
Width |
Bay Distance (m) |
Side height (m) |
Ridge height (m) |
Main frame profile |
Roof Pitch |
Wind Load (km/h) |
Snow Load (Kn/m2) |
|
SPT3/2300 |
3m |
3m |
2.5m |
3.1m |
100X48mm |
22° |
80 |
0.3 |
|
SPT4/2300 |
4m |
3m |
2.5m |
3.3m |
100X48mm |
22° |
80 |
0.3 |
|
SPT5/2500 |
5m |
3m |
2.5m |
3.5m |
100X48mm |
22° |
80 |
0.3 |
|
SPT6/2500 |
6m |
3m |
2.5m |
3.7m |
100X48mm |
22° |
80 |
0.3 |
|
SPT8/2500 |
8m |
3m |
2.5m |
4.1m |
100X48mm |
22° |
80 |
0.3 |
|
SPT9/2500 |
9m |
3m |
2.5m |
4.3m |
100X48mm |
22° |
80 |
0.3 |
|
SPT10/2500 |
10m |
5m |
3m |
4.65m |
122X68mm |
22° |
100 |
0.3 |
|
MPT12/2500 |
12m |
5m |
3m |
5m |
122X68mm |
22° |
100 |
0.3 |
|
MPT15/3000 |
15m |
5m |
3m |
5.35m |
150X110mm |
18° |
100 |
0.3 |
|
MPT18/3000 |
18m |
5m |
3m |
5.8m |
150X110mm |
18° |
100 |
0.3 |
|
LPT20/4000 |
20m |
5m |
4m |
7.2m |
204X112mm |
18° |
110 |
0.3 |
|
LPT22/4000 |
22m |
5m |
4m |
7.45m |
204X112mm |
18° |
100 |
0.3 |
|
LPT25/4000 |
25m |
5m |
4m |
7.95m |
204X112mm |
18° |
100 |
0.3 |
|
LPT30/4000 |
30m |
5m |
4m |
8.92m |
300X120mm |
18° |
100 |
0.3 |
|
LPT40/4000 |
40m |
5m |
4m |
10.54m |
300X120mm |
18° |
100 |
0.3 |
|
LPT50/4000 |
50m |
5m |
4m |
12.17m |
350X120mm |
18° |
120 |
0.3 |
|
LPT60/4000 |
60m |
5m |
4m |
13.94m |
420X120mm |
18° |
100 |
0.3
|
Material and Quality
|
FRAME |
Hard pressed anodized aluminum alloy 6061/T6 |
|
ROOF COVER |
850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof |
|
SIDEWA |
650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall |
|
CONNECTION |
Hot Dip Gavanized Steel Connector, Aluminum roof connection |
Structure details
