Popular Curve Marquee Tent for Swimming pool tent from China

Popular Curve Marquee Tent for Swimming pool tent from China

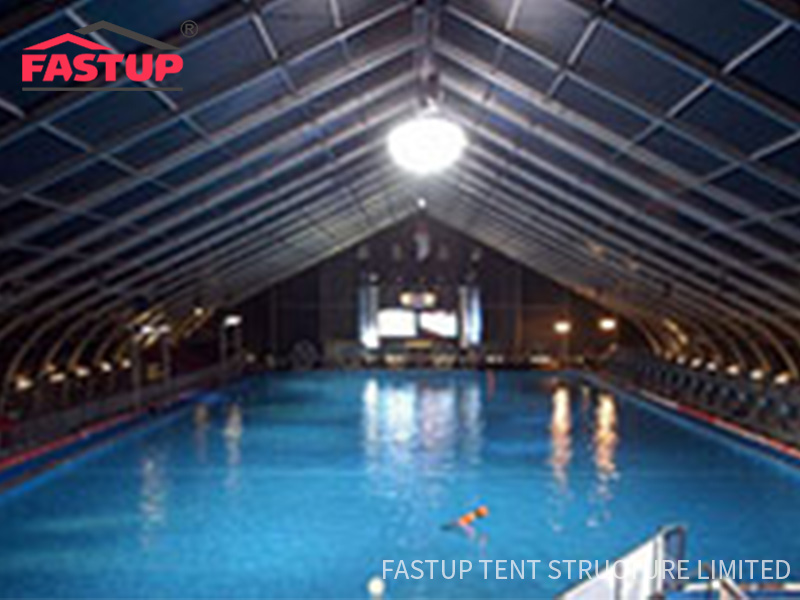

FASTUP is the largest tent manufacturer and supplier in China. We can provide you with various types of swimming tents. Such as ordinary A-shaped tents, Arcum tents, curved tents, etc., which have the characteristics of sun protection, wind protection, rain protection, rust prevention, flame retardancy, etc., and can provide better protection than open-air sports venues. Special floors, ventilation windows, ventilation ducts, lighting systems and other facilities can also be added to create a fully functional mobile professional sports venue.

All size dimension

Fastup Tent Item No.	Width (m)	Bay distance (m)	Side height (m)	Ridge height (m)	Main frame profile (mm)	Wind load (km/h)	Snow load (KN/m²)
CRV10/3000	10m	5m	3m	5m	122x68mm	100	0.4
CRV12/3000	12m	5m	3m	5.4m	122x68mm	100	0.4
CRV15/3000	15m	5m	3m	5.35m	166x88mm	100k	0.4
CRV20/4000	20m	5m	4m	9.1m	203x110mm	100	0.4
CRV25/4000	25m	5m	4m	10.3m	250x111mm	100	0.4
CRV30/4000	30m	5m	4m	11.5m	256x113mm	100	0.4
CRV40/4000	40m	5m	4m	13.8m	300x125mm	100	0.4

Material and Quality

FRAME	Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER	850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDEWA	650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall
CONNECTION	Hot Dip Gavanized Steel Connector, Aluminum roof connection
