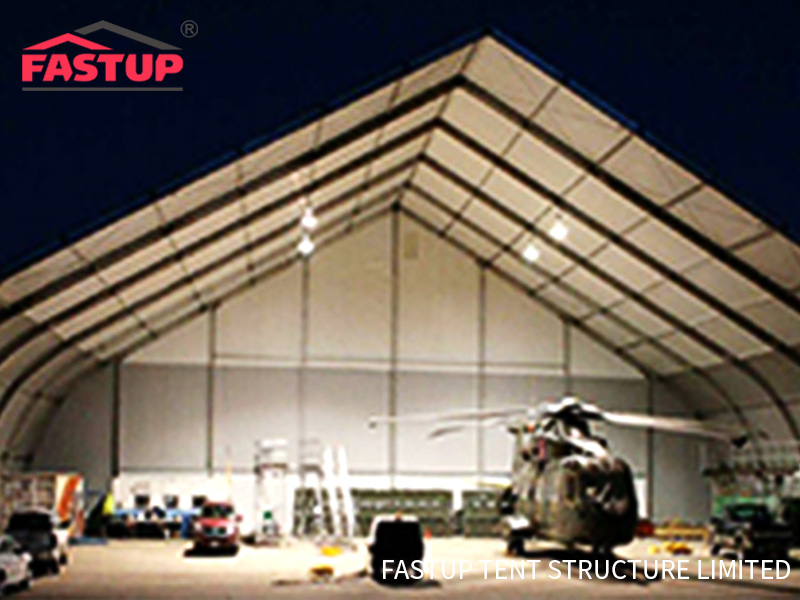

The Ideal Durable Mobile airplane hanger Tent From FASTUP TENT

The Ideal Durable Mobile airplane hanger Tent From FASTUP TENT

Want to have an ideal and durable tent that is portable? FUSTUP curved pole tent is the perfect match for all your requirements. Our factory is engaged in manufacturing and supplying various brands of tents, all designed and produced with high-quality raw materials and latest technology.

The mobile tent is made of 850gsm blackout PVC roof, a variety of sidewalls are available, such as 650gsm white transparent PVC sidewalls, transparent PVC sidewalls, etc. Our curved tent frame is available in 10m and 40m widths and can reach almost any required length in 5m increments.

The roof beams of the tent are in a curved shape, which makes the tent stronger for snow and rain loads on the roof covering and can withstand wind speeds of 120 km/h and snow loads of 0.4KN/M2. Fastup curved pole tent is very easy to assemble, disassemble and move to different places.

All size dimension

Fastup Tent Item No.	Width (m)	Bay distance (m)	Side height (m)	Ridge height (m)	Main frame profile (m)	Wind load (km/h)	Snow load (KN/m2)
CRV10/3000	10m	5m	3m	5m	122x68mm	110	0.3
CRV12/3000	12m	5m	3m	5.4m	122x68mm	110	0.3
CRV15/3000	15m	5m	3.5m	5.85m	150x110mm	110	0.3
CRV20/4000	20m	5m	4m	8.66m	150x112mm	110	0.3
CRV25/4000	25m	5m	4m	10.3m	250x111mm	110	0.3
CRV30/4000	30m	5m	4m	11.5m	250x111mm	110	0.3
CRV40/4000	40m	5m	4m	13.8m	300x1220mm	110	0.3

Material and Quality

FRAME	Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER	850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDEWA	650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall
CONNECTION	Hot Dip Gavanized Steel Connector, Aluminum roof connection
