Guangzhou Fastup Tent Manufacturing Co., Ltd.

Aluminum PVC Curve Mobile airplane hanger tent 20x30m 20m x 30m 20 by 30

Aluminum PVC Curve Mobile airplane hanger tent 20x30m 20m x 30m 20 by 30

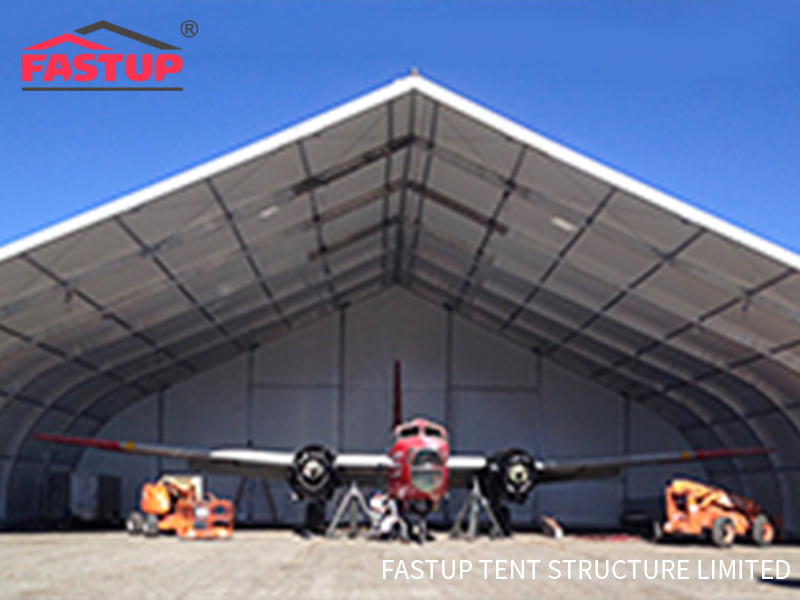

FASTUP launches the curved-column airplane tent, which uses aluminum alloy 6061/T6 as the main frame, which is very durable and never rusts. The roof is a rainproof double-layer PVC coated fabric with SGS flame retardant certificate. The mobile airplane tent designed for flexible travel can be assembled quickly and provides a stable protective space. In addition, we also equip it with locks and reinforced ground nails to ensure that it is not disturbed by extreme weather.

All size dimension

Fastup Tent Item No.	Width (m)	Bay distance (m)	Side height (m)	Ridge height (m)	Main frame profile (m)	Wind load (km/h)	Snow load (KN/m2)
CRV10/3000	10m	5m	3m	5m	122x68mm	110	0.3
CRV12/3000	12m	5m	3m	5.4m	122x68mm	110	0.3
CRV15/3000	15m	5m	3.5m	5.85m	150x110mm	110	0.3
CRV20/4000	20m	5m	4m	8.66m	150x112mm	110	0.3
CRV25/4000	25m	5m	4m	10.3m	250x111mm	110	0.3
CRV30/4000	30m	5m	4m	11.5m	250x111mm	110	0.3
CRV40/4000	40m	5m	4m	13.8m	300x1220mm	110	0.3

Material and Quality

FRAME	Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER	850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDEWA	650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall
CONNECTION	Hot Dip Gavanized Steel Connector, Aluminum roof connection
