ISpan Ice Skating Rink Tent in Pakistan Karachi Lahore Islamabad

ISpan Ice Skating Rink Tent in Pakistan Karachi Lahore Islamabad

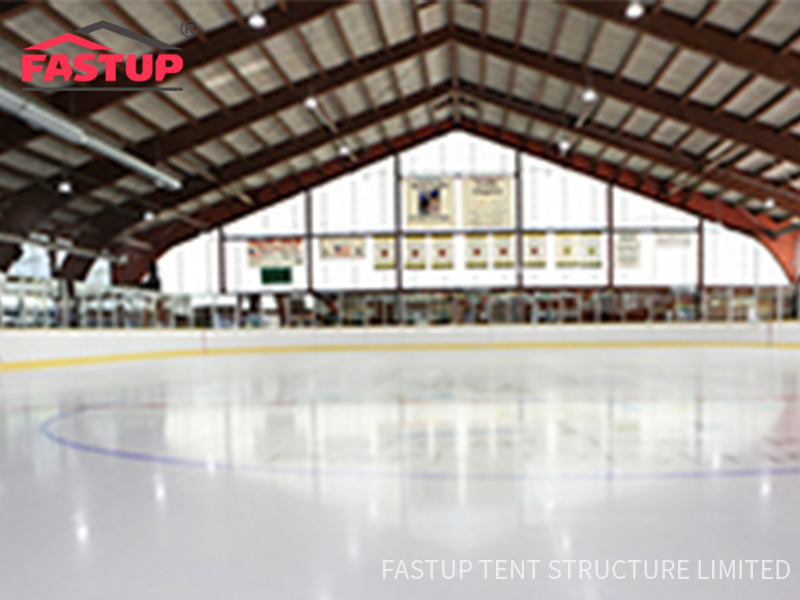

FUSTUP Tents' modular curved sports tents are constructed of 850gsm blackout PVC roofs in red, white and blue. With a variety of sidewall options, such as 650gsm white clear PVC sidewalls, clear PVC sidewalls, our curved tent frames are available in 10m and 40m widths and can be made to almost any desired length in 5m increments. Suitable for indoor ice rinks, they can also be equipped with dedicated floors, ventilation windows, ventilation ducts, lighting systems and many other facilities.

All size dimension

Fastup Tent Item No.	Width (m)	Bay distance (m)	Side height (m)	Ridge height (m)	Main frame profile (mm)	Wind load (km/h)	Snow load (KN/m²)
CRV10/3000	10m	5m	3m	5m	122x68mm	100	0.4
CRV12/3000	12m	5m	3m	5.4m	122x68mm	100	0.4
CRV15/3000	15m	5m	3m	5.35m	166x88mm	100k	0.4
CRV20/4000	20m	5m	4m	9.1m	203x110mm	100	0.4
CRV25/4000	25m	5m	4m	10.3m	250x111mm	100	0.4
CRV30/4000	30m	5m	4m	11.5m	256x113mm	100	0.4
CRV40/4000	40m	5m	4m	13.8m	300x125mm	100	0.4

Material and Quality

FRAME	Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER	850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDEWA	650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall
CONNECTION	Hot Dip Gavanized Steel Connector, Aluminum roof connection
