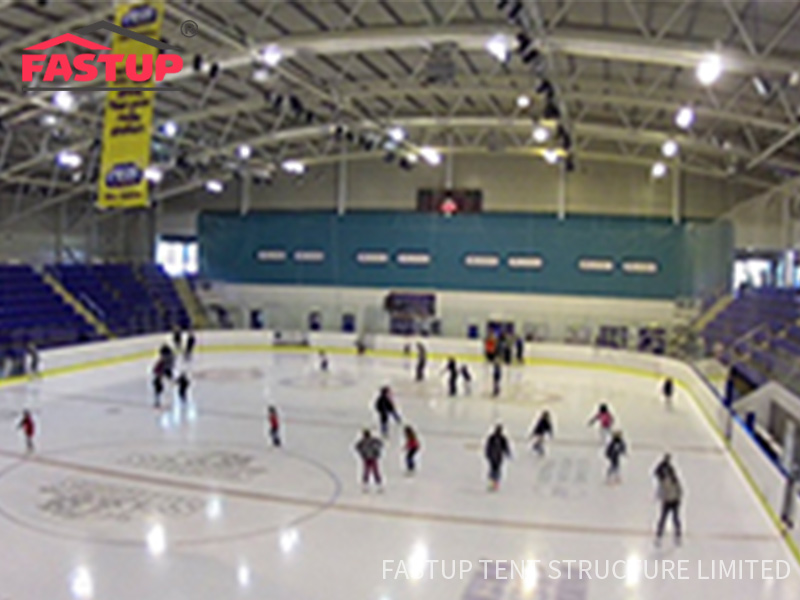

Large Curved Tent for Ice Stating rink tent In Zambia Lusaka

Large Curved Tent for Ice Stating rink tent In Zambia Lusaka
FUSTUP Curved Tent has a streamlined single arc top design, breaking through the limitations of traditional edges and heavy structures, and is suitable for diverse needs such as commercial exhibitions, festivals, and sports events! It uses lightweight aviation aluminum poles + high-transmittance PE membrane materials to balance sunshade and rain protection, and is suitable for both tropical rainy seasons and dry seasons!

FASUP TENT outdoor sports event tent series embodies the simplicity of design and structural strength, providing users with a first-class, proven professional tent system, making it the first choice for compact large tent designs in many of the world's top venues.

All size dimension

Fastup Tent Item No.	Width (m)	Bay distance (m)	Side height (m)	Ridge height (m)	Main frame profile (mm)	Wind load (km/h)	Snow load (KN/m²)
CRV10/3000	10m	5m	3m	5m	122x68mm	100	0.4
CRV12/3000	12m	5m	3m	5.4m	122x68mm	100	0.4
CRV15/3000	15m	5m	3m	5.35m	166x88mm	100k	0.4
CRV20/4000	20m	5m	4m	9.1m	203x110mm	100	0.4
CRV25/4000	25m	5m	4m	10.3m	250x111mm	100	0.4
CRV30/4000	30m	5m	4m	11.5m	256x113mm	100	0.4
CRV40/4000	40m	5m	4m	13.8m	300x125mm	100	0.4

Material and Quality

FRAME	Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER	850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDEWA	650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall
CONNECTION	Hot Dip Gavanized Steel Connector, Aluminum roof connection
