New Design Arcum Marquee Tent For Ice Stating Rink In Uk England London

New Design Arcum Marquee Tent For Ice Stating Rink In Uk England London

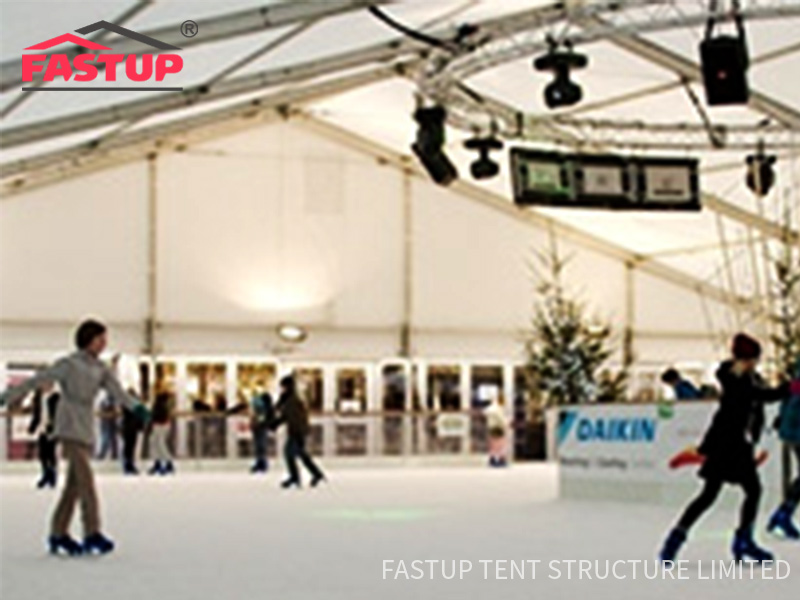

Ice skating has become one of the most popular outdoor sports activities. In order to avoid this sport being limited to winter, Fastup Tents can now provide indoor ice skating tents to meet your needs. The newly designed large arc-top tent has the characteristics of sun protection, wind protection, rain protection, rust prevention, and flame retardancy. It can also be equipped with special floors, ventilation windows, ventilation ducts, lighting systems and other facilities to create a fully functional mobile skating rink.

All size dimension

Fastup Tent Item No.	Width (m)	Bay distance (m)	Side height (m)	Ridge height (m)	Main frame profile (m)	Wind load (km/h)	Snow load (KN/m2)
DOM3/2500	3m	3m	2.5m	2.88m	60x48mm	80	0.2
DOM5/2500	5m	3m	2.5m	3.08m	82x48mm	80	0.2
DOM10/2500	10m	5m	2.5m	4.03m	100x48mm	80	0.2
DOM15/3000	15m	5m	3m	4.9m	166x88mm	100	0.2
ARC25/4000	25m	5m	4m	6.65m	204x112mm	100	0.2
ARC30/4000	30m	5m	4m	7.6m	250x111mm	100	0.2
ARC35/4000	35m	5m	4m	8.4m	256x113mm	100	0.2

Material and Quality

FRAME	Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER	850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDEWA	650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall
CONNECTION	Hot Dip Gavanized Steel Connector, Aluminum roof connection
