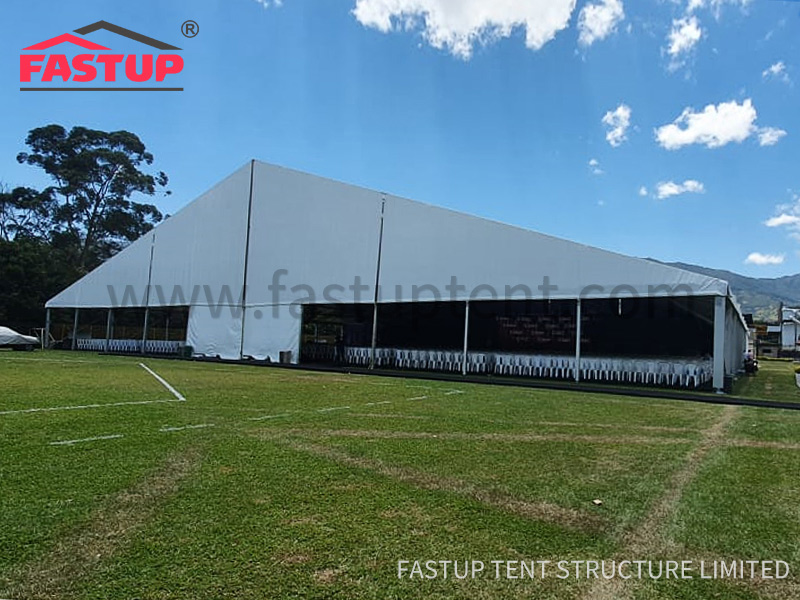

Clear Span Tent For Exhibition For 300 People Seater Guest

Clear Span Tent For Exhibition For 300 People Seater Guest
For the outdoor events, the weather is always one of the organizers biggest concerns. The high temperature, sudden heavy rain, strong winds, or even worse, could easily ruin the event. Now, FASTUP custom Exhibition tent could ease your concerns about the bad weather. Custom auto show display tents are designed and manufactured well with the strong aluminum frame structures, the wind load can reach 80-100km/h. There is no need to worry about the strong wind under the tent. Besides, a full line accessories are available for the tent structures, like the air cons. It ensure the gusts inside the tent can enjoy the event comfortable no matter it is hot summer or freezing winter.
FASTU TENT have rich experiences in tents and events, we not only design and manufacturer the best tent structures. But also offer you the most suitable tent solution for various events, and offer the most professional tent services.

Exhibition tent all size dimension

Fastup Tent Item No.	Width (m)	Bay Distance (m)	Side height (m)	Ridge height (m)	Main frame profile (mm)	Roof Pitch	Wind Load (km/h)	Snow Load (Kn/m²)
SPT3/2300	3m	3m	2.3m	2.85m	60X48mm	22°	100	0.3
SPT4/2300	4m	3m	2.3m	3.05m	60X48mm	22°	100	0.3
SPT5/2500	5m	3m	2.5m	3.45m	82X48mm	22°	100	0.3
SPT6/2500	6m	3m	2.5m	3.65m	82X48mm	22°	100	0.3
SPT8/2500	8m	3m	2.5m	4.05m	82X48mm	22°	100	0.3
SPT9/2500	9m	3m	2.5m	4.2m	100X48mm	22°	100	0.3
SPT10/2500	10m	3m	2.5m	4.4m	100X48mm	22°	100	0.3
MPT12/2500	12m	5m	2.5m	4.9m	122X68mm	22°	100	0.3
MPT15/3000	15m	5m	3m	5.35m	166X88mm	18°	100	0.3
MPT18/3000	18m	5m	3m	5.8m	166X88mm	18°	100	0.3
LPT20/4000	20m	5m	4m	7.2m	203X110mm	18°	100	0.3
LPT22/4000	22m	5m	4m	7.45m	203X110mm	18°	100	0.3
LPT25/4000	25m	5m	4m	7.95m	250X110mm	18°	100	0.3
LPT30/4000	30m	5m	4m	8.7m	255X110mm	18°	100	0.3
LPT40/4000	40m	5m	4m	10.2m	340X170mm	18°	100	0.3
LPT50/4000	50m	5m	4m	11.9m	340X170mm	18°	100	0.3
LPT60/4000	60m	5m	4m	13.5m	340X170mm	18°	100	0.3

Material and Quality

FRAME	Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER	850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDEWA	650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall
CONNECTION	Hot Dip Gavanized Steel Connector, Aluminum roof connection

Structure details
