Air Exhibition Tent In Uk England London Bristol Liverpool Newcastle

Air Exhibition Tent In Uk England London Bristol Liverpool Newcastle

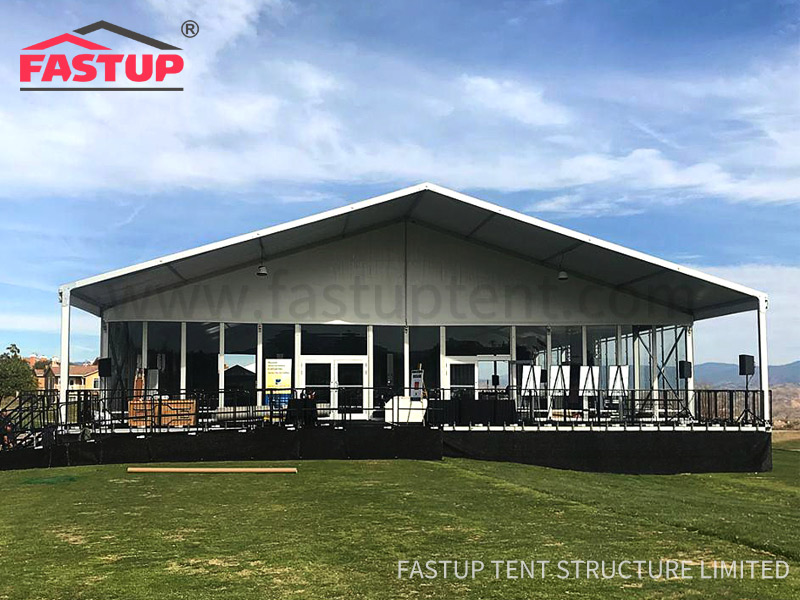

FASTUP TENT is exclusive tent supplier for this excellent exposition. FASTUP TENT not only provided tents as exposition halls and corridors but also air conditioners and other event facilities. The side height is 4m for the exhibition tents, and glass walls are equipped on all four sides, which makes the visitors can share the sunshine and outside scenery.
There is no pole inside of the tents, which means you can have 100% internal space. The most obvious innovation is the inflatable and thermal roof system, it provides heat isolation to achieve the thermostatic effect. The roof is almost flat with only 7-degree roof pitch. It is worth mentioning that there is a parapet on the eve of the tent, clients can have a big space for the banner advertising. For this exposition, the advertising banner is attractive with its blue background, which also perfectly is integrated into the surrounding scenery.
The air conditioners for this exposition were specialized for our tents, together with the air curtain, it can cool the fully inner area, also keep the indoor air be fresh and comfortable.
FASTUP TENT perfectly supported this unique exposition. Hope we also can support your events in future.


Exhibition tent all size dimension

Fastup Tent
Item No.

Width
(m)

Bay Distance (m)

Side height (m)

Ridge height (m)

Main frame profile
(mm)

Roof Pitch

Wind Load (km/h)

Snow Load (Kn/m2)

SPT3/2300

3m

3m

2.3m

2.85m

60X48mm

22°

100

0.3

SPT4/2300

4m

3m

2.3m

3.05m

60X48mm

22°

100

0.3

SPT5/2500

5m

3m

2.5m

3.45m

82X48mm

22°

100

0.3

SPT6/2500

6m

3m

2.5m

3.65m

82X48mm

22°

100

0.3

SPT8/2500

8m

3m

2.5m

4.05m

82X48mm

22°

100

0.3

SPT9/2500

9m

3m

2.5m

4.2m

100X48mm

22°

100

0.3

SPT10/2500

10m

3m

2.5m

4.4m

100X48mm

22°

100

0.3

MPT12/2500

12m

5m

2.5m

4.9m

122X68mm

22°

100

0.3

MPT15/3000

15m

5m

3m

5.35m

166X88mm

18°

100

0.3

MPT18/3000

18m

5m

3m

5.8m

166X88mm

18°

100

0.3

LPT20/4000

20m

5m

4m

7.2m

203X110mm

18°

100

0.3

LPT22/4000

22m

5m

4m

7.45m

203X110mm

18°

100

0.3

LPT25/4000

25m

5m

4m

7.95m

250X110mm

18°

100

0.3

LPT30/4000

30m

5m

4m

8.7m

255X110mm

18°

100

0.3

LPT40/4000

40m

5m

4m

10.2m

340X170mm

18°

100

0.3

LPT50/4000

50m

5m

4m

11.9m

340X170mm

18°

100

0.3

LPT60/4000

60m

5m

4m

13.5m

340X170mm

18°

100

0.3


Material and Quality

FRAME

Hard pressed anodized aluminum alloy 6061/T6

ROOF COVER

850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof

SIDEWA

650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall

CONNECTION

Hot Dip Gavanized Steel Connector, Aluminum roof connection



Structure details
