Car show event tent 10X20M 10M X 20M 10 By 20 20X10 20M X 10M

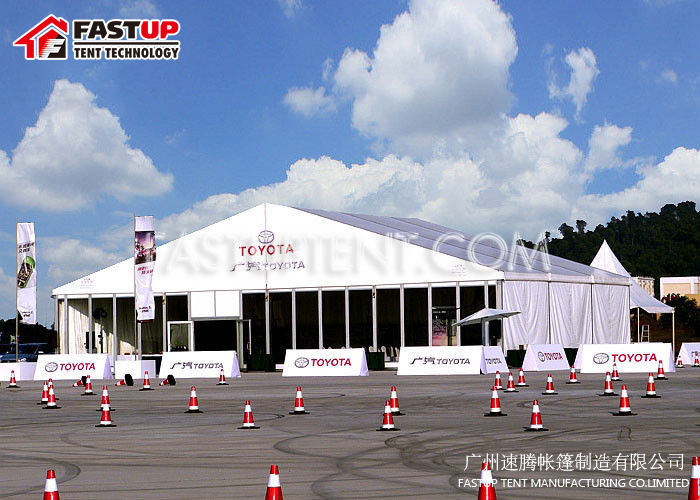

This car showroom tents are built by Fastup
Tent Manufacturing Co., Ltd. in Toronto, Canada. In 2011, Fastup Tent once
again cooperated with Toyota, with unique design on the basis of experience.
The Toyota's Clear span tent for temporary exhibition hall looks beautiful and
attractive, as a 6-hour central landmark and highlights of Toronto on that day,
displays its excellent architectural design.
Fastup Tent, as a tent supplier of majority of China's auto show activities, certainly will not miss this great event. We provide tents for ticket offices, lounge areas, car exhibition halls, etc., to protect the exhibitors and the audience from the impact of wind and rain.
Event Tent all size dimension
|
Fastup Tent |
Width |
Bay Distance (m) |
Side height (m) |
Ridge height (m) |
Main frame profile |
Roof Pitch |
Wind Load (km/h) |
Snow Load (Kn/m2) |
|
SPT3/2300 |
3m |
3m |
2.3m |
2.85m |
60X48mm |
22° |
100 |
0.3 |
|
SPT4/2300 |
4m |
3m |
2.3m |
3.05m |
60X48mm |
22° |
100 |
0.3 |
|
SPT5/2500 |
5m |
3m |
2.5m |
3.45m |
82X48mm |
22° |
100 |
0.3 |
|
SPT6/2500 |
6m |
3m |
2.5m |
3.65m |
82X48mm |
22° |
100 |
0.3 |
|
SPT8/2500 |
8m |
3m |
2.5m |
4.05m |
82X48mm |
22° |
100 |
0.3 |
|
SPT9/2500 |
9m |
3m |
2.5m |
4.2m |
100X48mm |
22° |
100 |
0.3 |
|
SPT10/2500 |
10m |
3m |
2.5m |
4.4m |
100X48mm |
22° |
100 |
0.3 |
|
MPT12/2500 |
12m |
5m |
2.5m |
4.9m |
122X68mm |
22° |
100 |
0.3 |
|
MPT15/3000 |
15m |
5m |
3m |
5.35m |
166X88mm |
18° |
100 |
0.3 |
|
MPT18/3000 |
18m |
5m |
3m |
5.8m |
166X88mm |
18° |
100 |
0.3 |
|
LPT20/4000 |
20m |
5m |
4m |
7.2m |
203X110mm |
18° |
100 |
0.3 |
|
LPT22/4000 |
22m |
5m |
4m |
7.45m |
203X110mm |
18° |
100 |
0.3 |
|
LPT25/4000 |
25m |
5m |
4m |
7.95m |
250X110mm |
18° |
100 |
0.3 |
|
LPT30/4000 |
30m |
5m |
4m |
8.7m |
255X110mm |
18° |
100 |
0.3 |
|
LPT40/4000 |
40m |
5m |
4m |
10.2m |
340X170mm |
18° |
100 |
0.3 |
|
LPT50/4000 |
50m |
5m |
4m |
11.9m |
340X170mm |
18° |
100 |
0.3 |
|
LPT60/4000 |
60m |
5m |
4m |
13.5m |
340X170mm |
18° |
100 |
0.3 |
Material and Quality
|
FRAME |
Hard pressed anodized aluminum alloy 6061/T6 |
|
ROOF COVER |
850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof |
|
SIDEWA |
650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall |
|
CONNECTION |
Hot Dip Gavanized Steel Connector, Aluminum roof connection |
Structure details
