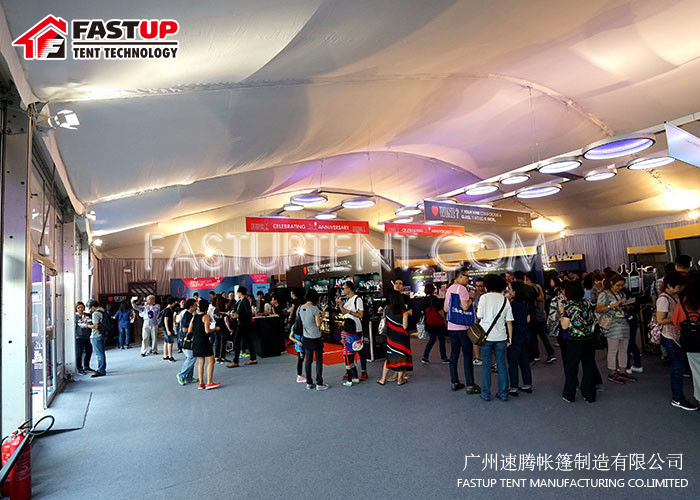

FASTUP TENT high-quality event tent marquee is widely used in various of exhibitions and trade fairs. The pictures show a 15m x 20m event tent marquee which offers total 600 square meter event area, people inside can have an impressed vision and enjoy the show comfortably. It is with tempered glass sidewalls and ABS solid wall system, chasing a beyond comparison, elegance, nobility for each guest.
FASTUP TENT offers clear span 10m to 60m event tent marquee, customized design is available.

Event Tent all size dimension

Fastup Tent Item No.	Width(m)	Bay Distance(m）	Side height （m）	Ridge height （m）	Main frame pfofile (mm)	Wind Load （km/h）	Snow Load（Kn/ m²）
DOM3/2500	3m	3m	2.5m	2.88m	60x48mm	80	0.2
DOM5/2500	5m	3m	2.5m	3.08m	82x48mm	80	0.2
DOM10/2500	10m	5m	2.5m	4.03m	100x48mm	80	0.2
DOM15/3000	15m	5m	3m	4.9m	166x88mm	100	0.2
ARC25/4000	25m	5m	4m	6.65m	204x112mm	100	0.2
ARC30/4000	30m	5m	4m	7.6m	250x111mm	100	0.2
ARC35/4000	35m	5m	4m	8.4m	256x113mm	100	0.2

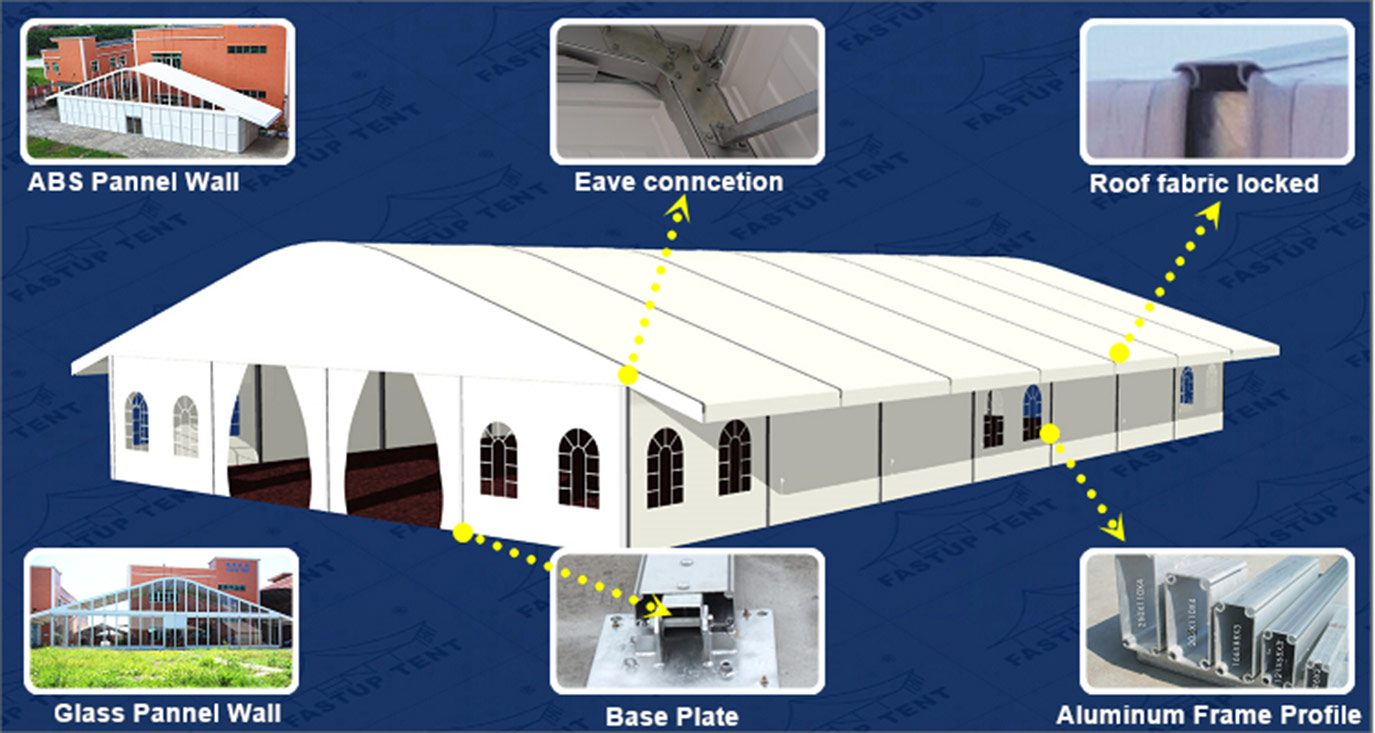

Material and Quality

FRAME	Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER	850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDEWA	650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall
CONNECTION	Hot Dip Gavanized Steel Connector, Aluminum roof connection
