China Outdoor Car Show Tent Size10X12M 10M X 12M 10 By 12 12X10 12M X 10M

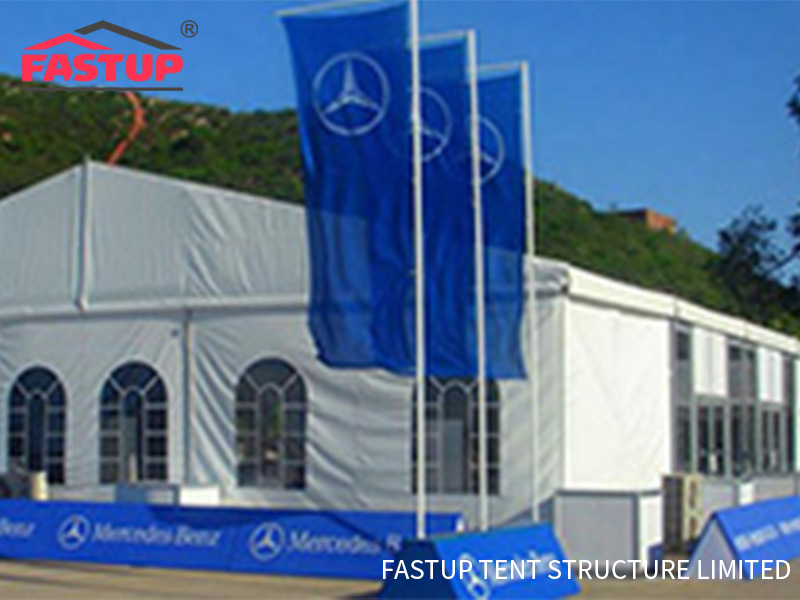

Exhibition/fair organizers, need an easy-to-build exhibition tent? FASTUP Tents can provide you with a variety of solutions that meet your needs. Whether you are looking to expand the size of the venue temporarily or semi-permanently, we can help you.
The large-span tents for car exhibitions we provide are made of recyclable environmentally friendly steel materials, can withstand strong winds up to 120 km/h, are waterproof and fireproof, and use PVC fabric or ABS walls as side walls. They can be used for reusable temporary or semi-permanent buildings. Not only can it protect cars from outdoor wind and rain, but it can also be widely used in temporary exhibition halls, reception and consultation rooms, VIP lounges, etc. for outdoor car exhibitions. The span width of the car exhibition tents for sale is 3m-60m, with different sizes and styles.
Please call or email us if you have any needs
Car show Tent all size dimension
|
Fastup Tent |
Width |
Bay Distance (m) |
Side height (m) |
Ridge height (m) |
Main frame profile |
Roof Pitch |
Wind Load (km/h) |
Snow Load (Kn/m2) |
|
SPT3/2300 |
3m |
3m |
2.3m |
2.85m |
60X48mm |
22° |
100 |
0.3 |
|
SPT4/2300 |
4m |
3m |
2.3m |
3.05m |
60X48mm |
22° |
100 |
0.3 |
|
SPT5/2500 |
5m |
3m |
2.5m |
3.45m |
82X48mm |
22° |
100 |
0.3 |
|
SPT6/2500 |
6m |
3m |
2.5m |
3.65m |
82X48mm |
22° |
100 |
0.3 |
|
SPT8/2500 |
8m |
3m |
2.5m |
4.05m |
82X48mm |
22° |
100 |
0.3 |
|
SPT9/2500 |
9m |
3m |
2.5m |
4.2m |
100X48mm |
22° |
100 |
0.3 |
|
SPT10/2500 |
10m |
3m |
2.5m |
4.4m |
100X48mm |
22° |
100 |
0.3 |
|
MPT12/2500 |
12m |
5m |
2.5m |
4.9m |
122X68mm |
22° |
100 |
0.3 |
|
MPT15/3000 |
15m |
5m |
3m |
5.35m |
166X88mm |
18° |
100 |
0.3 |
|
MPT18/3000 |
18m |
5m |
3m |
5.8m |
166X88mm |
18° |
100 |
0.3 |
|
LPT20/4000 |
20m |
5m |
4m |
7.2m |
203X110mm |
18° |
100 |
0.3 |
|
LPT22/4000 |
22m |
5m |
4m |
7.45m |
203X110mm |
18° |
100 |
0.3 |
|
LPT25/4000 |
25m |
5m |
4m |
7.95m |
250X110mm |
18° |
100 |
0.3 |
|
LPT30/4000 |
30m |
5m |
4m |
8.7m |
255X110mm |
18° |
100 |
0.3 |
|
LPT40/4000 |
40m |
5m |
4m |
10.2m |
340X170mm |
18° |
100 |
0.3 |
|
LPT50/4000 |
50m |
5m |
4m |
11.9m |
340X170mm |
18° |
100 |
0.3 |
|
LPT60/4000 |
60m |
5m |
4m |
13.5m |
340X170mm |
18° |
100 |
0.3 |
Material and Quality
|
FRAME |
Hard pressed anodized aluminum alloy 6061/T6 |
|
ROOF COVER |
850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof |
|
SIDEWA |
650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall |
|
CONNECTION |
Hot Dip Gavanized Steel Connector, Aluminum roof connection |
Structure details
