From China marquee tent For Car show Diameter 12M

From China marquee tent For Car show Diameter 12M

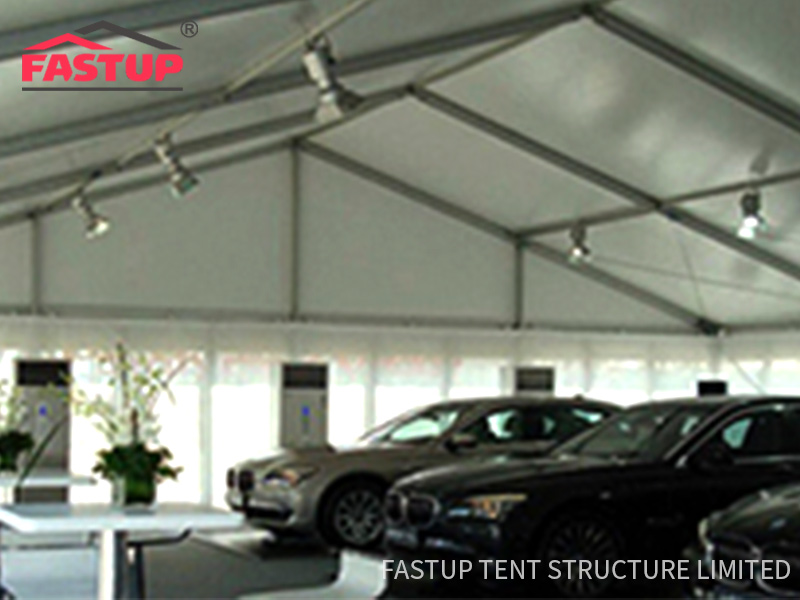

Want to hold a car show and have the same protection as indoors? The space problem of the venue has also become an obstacle? Don't worry, Fastup Tent recommends this car show tent for you, which has 100% interior space, beautiful appearance, straight roof lines, and larger interior space. It is made of high-strength aluminum alloy (6061/T6), double-sided PVC flame-retardant fabric, and meets European standards DIN4102 B1 and M2.
If you have any needs, please call or email us

Car show Tent all size dimension

Fastup Tent Item No.	Width (m)	Bay Distance (m)	Side height (m)	Ridge height (m)	Main frame profile (mm)	Roof Pitch	Wind Load (km/h)	Snow Load (Kn/m²)
SPT3/2300	3m	3m	2.3m	2.85m	60X48mm	22°	100	0.3
SPT4/2300	4m	3m	2.3m	3.05m	60X48mm	22°	100	0.3
SPT5/2500	5m	3m	2.5m	3.45m	82X48mm	22°	100	0.3
SPT6/2500	6m	3m	2.5m	3.65m	82X48mm	22°	100	0.3
SPT8/2500	8m	3m	2.5m	4.05m	82X48mm	22°	100	0.3
SPT9/2500	9m	3m	2.5m	4.2m	100X48mm	22°	100	0.3
SPT10/2500	10m	3m	2.5m	4.4m	100X48mm	22°	100	0.3
MPT12/2500	12m	5m	2.5m	4.9m	122X68mm	22°	100	0.3
MPT15/3000	15m	5m	3m	5.35m	166X88mm	18°	100	0.3
MPT18/3000	18m	5m	3m	5.8m	166X88mm	18°	100	0.3
LPT20/4000	20m	5m	4m	7.2m	203X110mm	18°	100	0.3
LPT22/4000	22m	5m	4m	7.45m	203X110mm	18°	100	0.3
LPT25/4000	25m	5m	4m	7.95m	250X110mm	18°	100	0.3
LPT30/4000	30m	5m	4m	8.7m	255X110mm	18°	100	0.3
LPT40/4000	40m	5m	4m	10.2m	340X170mm	18°	100	0.3
LPT50/4000	50m	5m	4m	11.9m	340X170mm	18°	100	0.3
LPT60/4000	60m	5m	4m	13.5m	340X170mm	18°	100	0.3

Material and Quality

FRAME	Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER	850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDEWA	650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall
CONNECTION	Hot Dip Gavanized Steel Connector, Aluminum roof connection
