Factory white Car show marquee tent for sale
FUSTUP Tent has high-quality tent products and excellent services. With 18 years of production experience, it is the largest tent manufacturer and seller in China. With good products, it is widely exported to overseas markets such as the United States, the United Kingdom, Portugal, Poland, Spain, etc., and is widely used in outdoor parties, weddings, exhibitions, trade fairs, warehouses, etc.

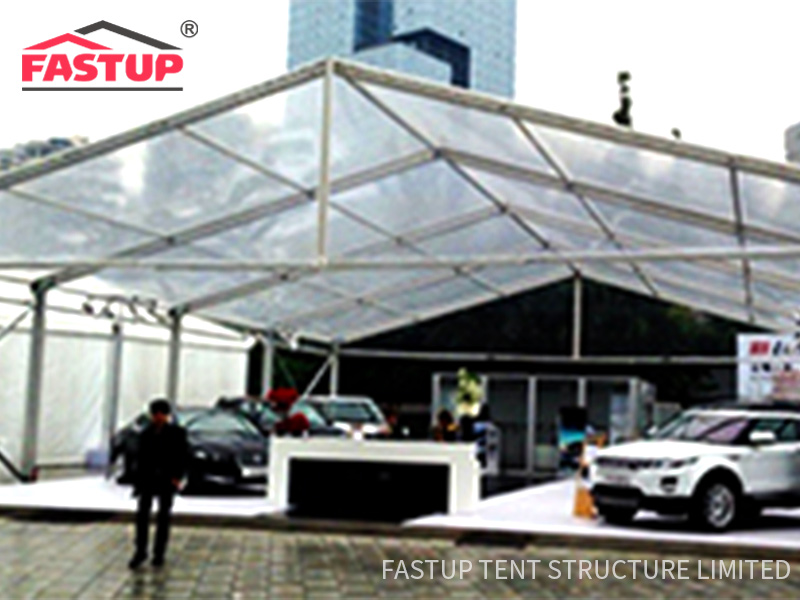

Among them, the white auto show tent is one of our products. It is designed with aviation-grade aluminum alloy frame and translucent ceiling. It has a span of 3 meters to 60 meters and the length can be extended indefinitely. It can not only protect cars from outdoor wind and rain, but also can be widely used in temporary exhibition halls, exhibition halls, reception and consultation rooms, VIP lounges, etc. for outdoor auto exhibitions.
Car show Tent all size dimension
|
Fastup Tent |
Width |
Bay Distance (m) |
Side height (m) |
Ridge height (m) |
Main frame profile |
Roof Pitch |
Wind Load (km/h) |
Snow Load (Kn/m2) |
|
SPT3/2300 |
3m |
3m |
2.3m |
2.85m |
60X48mm |
22° |
100 |
0.3 |
|
SPT4/2300 |
4m |
3m |
2.3m |
3.05m |
60X48mm |
22° |
100 |
0.3 |
|
SPT5/2500 |
5m |
3m |
2.5m |
3.45m |
82X48mm |
22° |
100 |
0.3 |
|
SPT6/2500 |
6m |
3m |
2.5m |
3.65m |
82X48mm |
22° |
100 |
0.3 |
|
SPT8/2500 |
8m |
3m |
2.5m |
4.05m |
82X48mm |
22° |
100 |
0.3 |
|
SPT9/2500 |
9m |
3m |
2.5m |
4.2m |
100X48mm |
22° |
100 |
0.3 |
|
SPT10/2500 |
10m |
3m |
2.5m |
4.4m |
100X48mm |
22° |
100 |
0.3 |
|
MPT12/2500 |
12m |
5m |
2.5m |
4.9m |
122X68mm |
22° |
100 |
0.3 |
|
MPT15/3000 |
15m |
5m |
3m |
5.35m |
166X88mm |
18° |
100 |
0.3 |
|
MPT18/3000 |
18m |
5m |
3m |
5.8m |
166X88mm |
18° |
100 |
0.3 |
|
LPT20/4000 |
20m |
5m |
4m |
7.2m |
203X110mm |
18° |
100 |
0.3 |
|
LPT22/4000 |
22m |
5m |
4m |
7.45m |
203X110mm |
18° |
100 |
0.3 |
|
LPT25/4000 |
25m |
5m |
4m |
7.95m |
250X110mm |
18° |
100 |
0.3 |
|
LPT30/4000 |
30m |
5m |
4m |
8.7m |
255X110mm |
18° |
100 |
0.3 |
|
LPT40/4000 |
40m |
5m |
4m |
10.2m |
340X170mm |
18° |
100 |
0.3 |
|
LPT50/4000 |
50m |
5m |
4m |
11.9m |
340X170mm |
18° |
100 |
0.3 |
|
LPT60/4000 |
60m |
5m |
4m |
13.5m |
340X170mm |
18° |
100 |
0.3 |
Material and Quality
|
FRAME |
Hard pressed anodized aluminum alloy 6061/T6 |
|
ROOF COVER |
850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof |
|
SIDEWA |
650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall |
|
CONNECTION |
Hot Dip Gavanized Steel Connector, Aluminum roof connection |
Structure details
