Guangzhou Fastup Tent Manufacturing Co., Ltd.

Event Tent for Car show 10X15M 10M X 15M 10 By 15 15X10 15M X 10M

Event Tent for Car show 10X15M 10M X 15M 10 By 15 15X10 15M X 10M

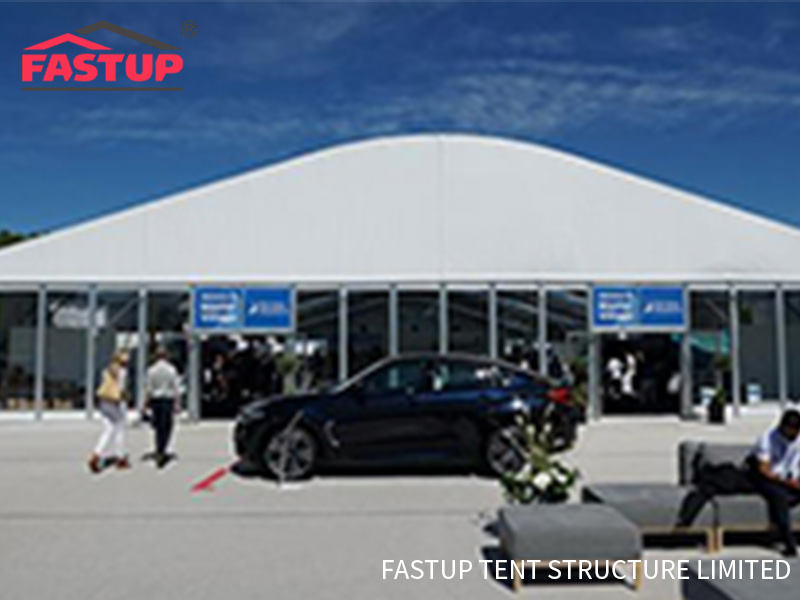

The large-span tents for car exhibitions launched by FASTUP can not only protect cars from outdoor wind and rain, but can also be widely used in temporary exhibition halls, exhibition halls, reception and consultation rooms, VIP lounges, etc. for outdoor car exhibitions. The span width of the FASTUP car exhibition tents for sale is 3m-60m, with different sizes and styles. The length of the tent can be increased by 3m or 5m according to the venue and scale.

Car show Tent all size dimension

Fastup Tent Item No.	Width (m)	Bay Distance (m)	Side height (m)	Ridge height (m)	Main frame profile (mm)	Wind Load (km/h)	Snow Load (Kn/m²)
DOM5/2500	5m	3m	2.5m	3.08m	8248mm	100	0.3
DOM10/2500	10m	3m	2.5m	4.03m	100X48mm	100	0.3
DOM15/3000	15m	5m	3m	4.9m	166X88mm	100	0.3
ARC25/4000	25m	5m	4m	4m	204X112mm	100	0.3
ARC30/4000	30m	5m	4m	4m	250X111mm	100	0.3
ARC35/4000	35m	5m	4m	4m	256X113mm	100	0.3

Material and Quality

FRAME	Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER	850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDEWA	650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall
CONNECTION	Hot Dip Gavanized Steel Connector, Aluminum roof connection
