Made In China Marquee Banquet Hall Tent 2040

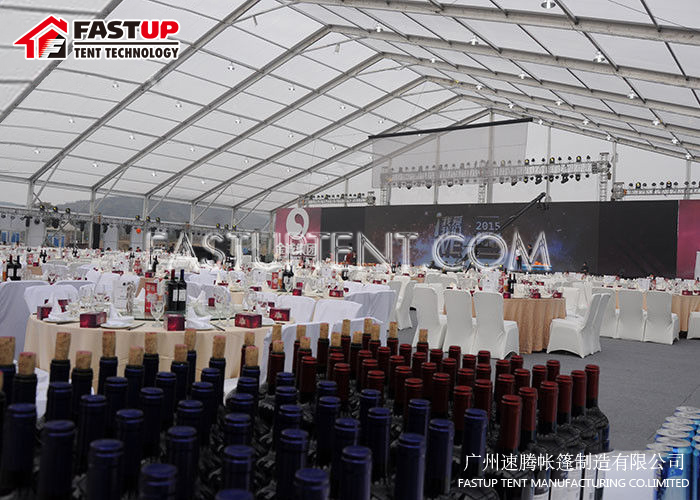

FASTUP TENT is big factory in China which manufactures marquee tents in various application. Since 2003, Fastup Tent has been providing all kinds of marquees For weddings, banquets, buffets, civil ceremonies etc. We offered beautiful linen, lighting, flooring and all accessories for our customer which made their banquet a big success. We sell our tents usually used as catering marquees and reception, dancing halls etc. since tents are relocatable and easy to set up and remove. This one is the 20x40m aluminum structure tent for banquet hall. it can accommodate about 650 to 800 guest.
Banquet Hall Tent all size dimension
|
Fastup Tent |
Width |
Bay Distance (m) |
Side height (m) |
Ridge height (m) |
Main frame profile |
Roof Pitch |
Wind Load (km/h) |
Snow Load (Kn/m2) |
|
SPT3/2300 |
3m |
3m |
2.3m |
2.85m |
60X48mm |
22° |
100 |
0.3 |
|
SPT4/2300 |
4m |
3m |
2.3m |
3.05m |
60X48mm |
22° |
100 |
0.3 |
|
SPT5/2500 |
5m |
3m |
2.5m |
3.45m |
82X48mm |
22° |
100 |
0.3 |
|
SPT6/2500 |
6m |
3m |
2.5m |
3.65m |
82X48mm |
22° |
100 |
0.3 |
|
SPT8/2500 |
8m |
3m |
2.5m |
4.05m |
82X48mm |
22° |
100 |
0.3 |
|
SPT9/2500 |
9m |
3m |
2.5m |
4.2m |
100X48mm |
22° |
100 |
0.3 |
|
SPT10/2500 |
10m |
3m |
2.5m |
4.4m |
100X48mm |
22° |
100 |
0.3 |
|
MPT12/2500 |
12m |
5m |
2.5m |
4.9m |
122X68mm |
22° |
100 |
0.3 |
|
MPT15/3000 |
15m |
5m |
3m |
5.35m |
166X88mm |
18° |
100 |
0.3 |
|
MPT18/3000 |
18m |
5m |
3m |
5.8m |
166X88mm |
18° |
100 |
0.3 |
|
LPT20/4000 |
20m |
5m |
4m |
7.2m |
203X110mm |
18° |
100 |
0.3 |
|
LPT22/4000 |
22m |
5m |
4m |
7.45m |
203X110mm |
18° |
100 |
0.3 |
|
LPT25/4000 |
25m |
5m |
4m |
7.95m |
250X110mm |
18° |
100 |
0.3 |
|
LPT30/4000 |
30m |
5m |
4m |
8.7m |
255X110mm |
18° |
100 |
0.3 |
|
LPT40/4000 |
40m |
5m |
4m |
10.2m |
340X170mm |
18° |
100 |
0.3 |
|
LPT50/4000 |
50m |
5m |
4m |
11.9m |
340X170mm |
18° |
100 |
0.3 |
|
LPT60/4000 |
60m |
5m |
4m |
13.5m |
340X170mm |
18° |
100 |
0.3 |
Material and Quality
|
FRAME |
Hard pressed anodized aluminum alloy 6061/T6 |
|
ROOF COVER |
850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof |
|
SIDEWA |
650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall |
|
CONNECTION |
Hot Dip Gavanized Steel Connector, Aluminum roof connection |
Structure details
