Wholesale Marquee Banquet Hall Tent 10X30M 10M X 30M 10 By 30 30X10 30M X 10M

Wholesale Marquee Banquet Hall Tent 10X30M 10M X 30M 10 By 30 30X10 30M X 10M

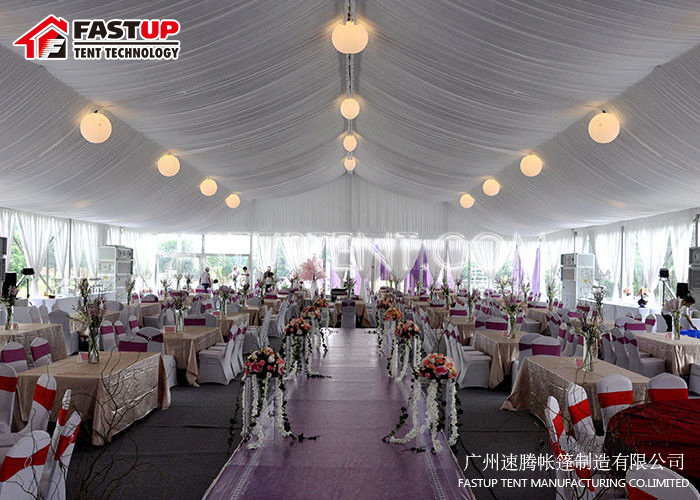

FASTUP built a strong and stable structures (10 x 30M banquet tent) for this important celebration party, it can hold about 300 person. Compare with the traditional pole tent, clear span tent will be more flexible in seating and guest movements. FASTUP use the hard pressed galvanized aluminum 6061/T6 for tent frame, the main profile is 100x48mm, which has 100km/h wind allowed and 0.3kn/m² snow loading. For completed design for banquet marquee, FASTUP provides VIP cassette wooden floor, carpet, lining, curtain, table, chair, lighting and other accessories.

Banquet Hall Tent all size dimension

Fastup Tent Item No.	Width (m)	Bay Distance (m)	Side height (m)	Ridge height (m)	Main frame profile (mm)	Roof Pitch	Wind Load (km/h)	Snow Load (Kn/m²)
SPT3/2300	3m	3m	2.3m	2.85m	60X48mm	22°	100	0.3
SPT4/2300	4m	3m	2.3m	3.05m	60X48mm	22°	100	0.3
SPT5/2500	5m	3m	2.5m	3.45m	82X48mm	22°	100	0.3
SPT6/2500	6m	3m	2.5m	3.65m	82X48mm	22°	100	0.3
SPT8/2500	8m	3m	2.5m	4.05m	82X48mm	22°	100	0.3
SPT9/2500	9m	3m	2.5m	4.2m	100X48mm	22°	100	0.3
SPT10/2500	10m	3m	2.5m	4.4m	100X48mm	22°	100	0.3
MPT12/2500	12m	5m	2.5m	4.9m	122X68mm	22°	100	0.3
MPT15/3000	15m	5m	3m	5.35m	166X88mm	18°	100	0.3
MPT18/3000	18m	5m	3m	5.8m	166X88mm	18°	100	0.3
LPT20/4000	20m	5m	4m	7.2m	203X110mm	18°	100	0.3
LPT22/4000	22m	5m	4m	7.45m	203X110mm	18°	100	0.3
LPT25/4000	25m	5m	4m	7.95m	250X110mm	18°	100	0.3
LPT30/4000	30m	5m	4m	8.7m	255X110mm	18°	100	0.3
LPT40/4000	40m	5m	4m	10.2m	340X170mm	18°	100	0.3
LPT50/4000	50m	5m	4m	11.9m	340X170mm	18°	100	0.3
LPT60/4000	60m	5m	4m	13.5m	340X170mm	18°	100	0.3

Material and Quality

FRAME	Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER	850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDEWA	650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall
CONNECTION	Hot Dip Gavanized Steel Connector, Aluminum roof connection
