Clear Span Tent

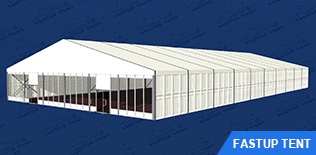

A Frame Clear Span Tent is our standard and most popular design in the past years. The width varies from 3m to 60m, length has no limitation. Length can be any times of 3m or 5m modular. There is no pole inside the tent, which enable you make maximum use of the space inside. Most popular size are 6x12m, 9x15m, 10x20m, 12x30m, 15x40m, 20x30m, 20x50m, 25x60m, 30x60m, 30x100m, 40x100m, 50x100m Ect. It is widely used as wedding tent, party tent, marquee, marquee tent.

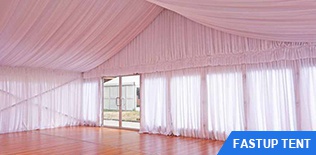

Accessories available for pagoda tent: lining & curtain, glass wall, glass door, ABS panel wall, Cassette wooden flooring system, ground anchor.
It is easy to set up and take down. You can check the installation video page on our website.

Contact Now

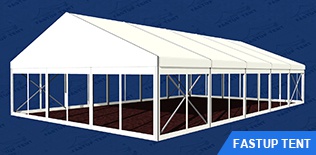

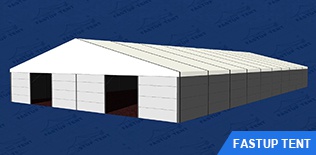

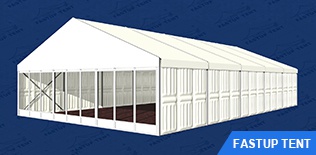

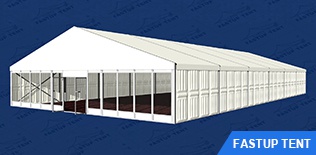

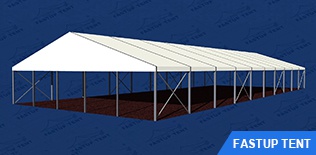

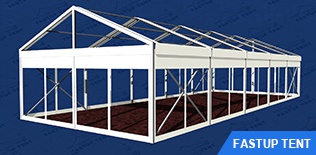

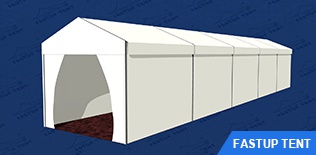

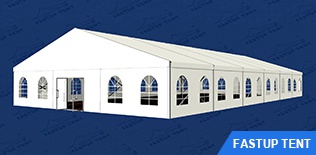

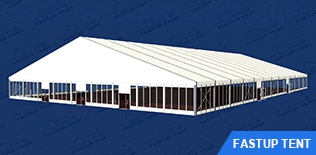

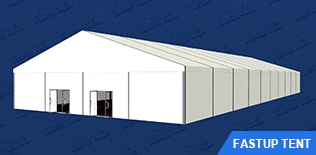

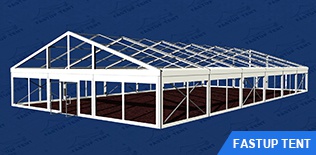

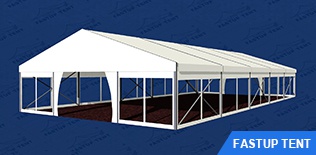

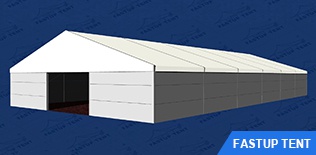

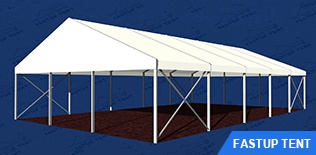

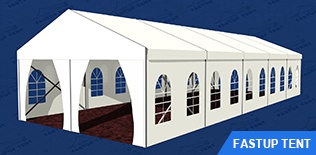

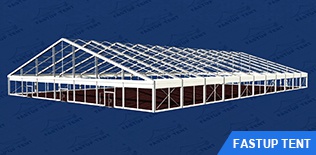

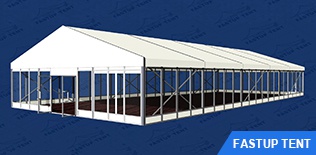

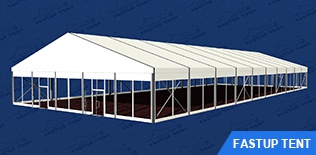

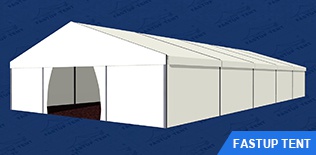

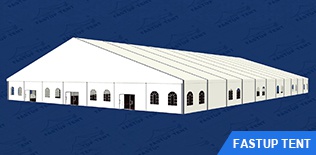

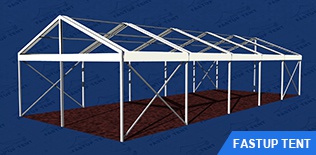

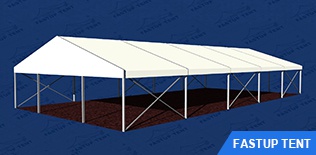

3D Design

Clear span tent all size 3D design 3-10m Clear span tent 10-18m Clear span tent 20-50m Clear span tent More

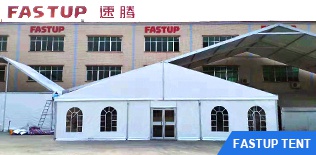

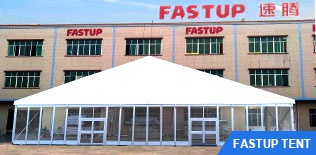

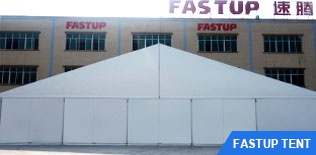

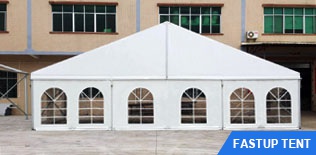

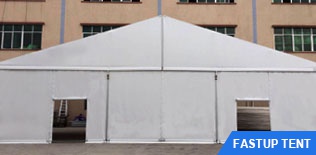

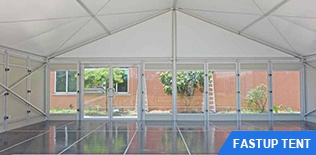

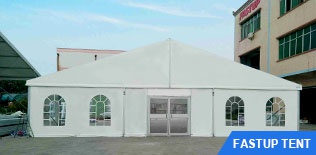

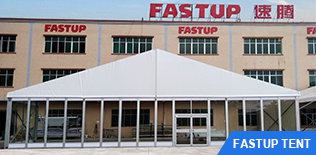

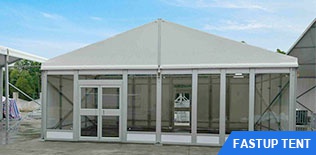

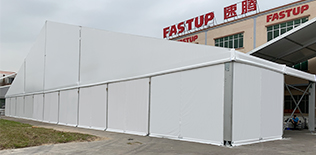

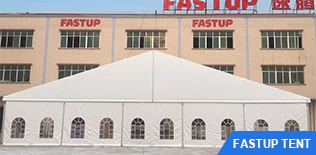

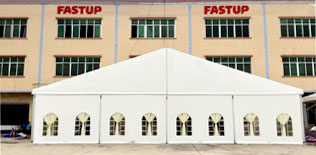

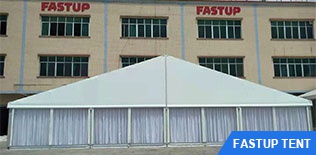

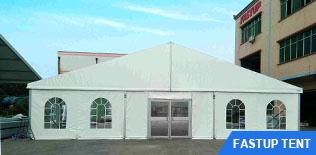

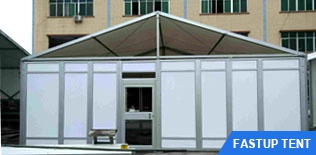

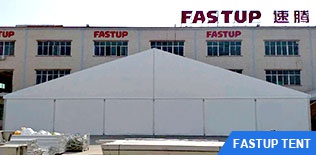

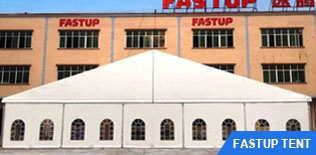

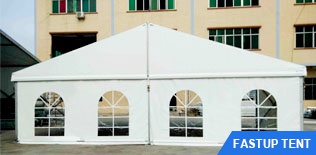

Test Instalation in Our Factory

Clear span all size test Instalation 3-10m Clear span tent 10-18m Clear span tent 20-50m Clear span tent More

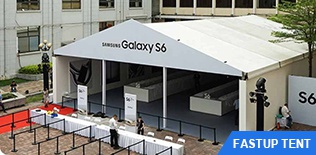

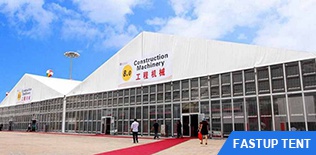

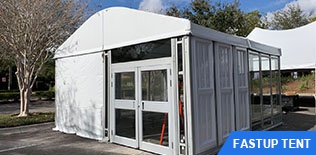

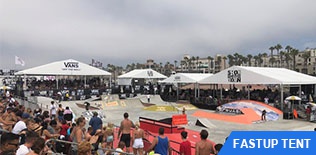

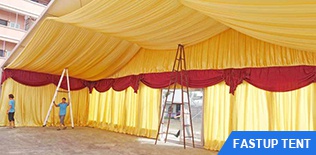

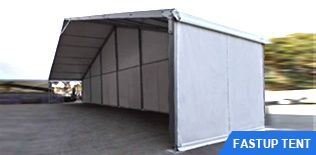

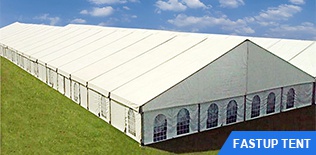

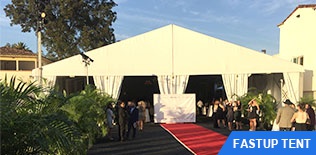

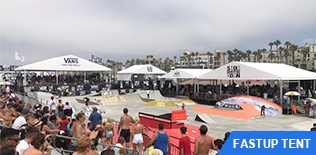

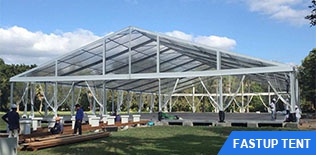

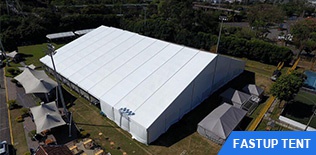

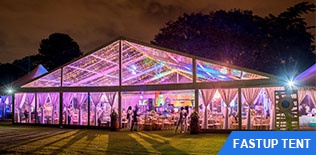

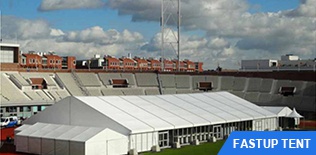

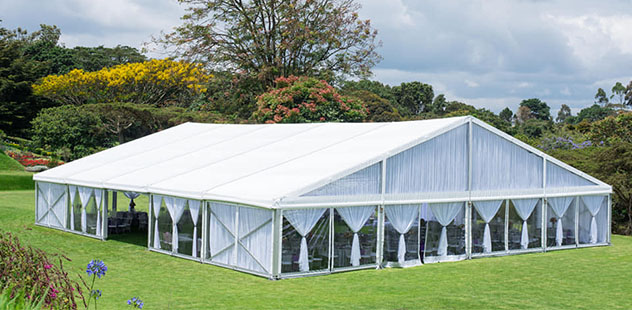

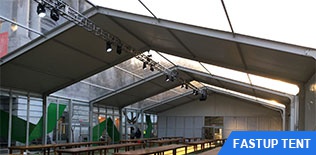

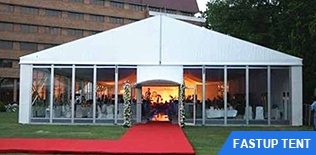

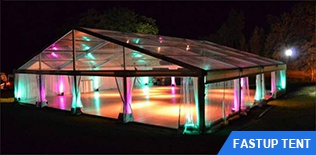

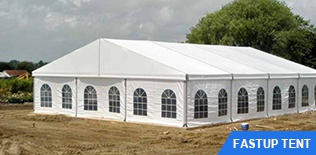

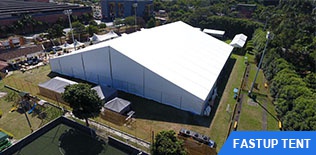

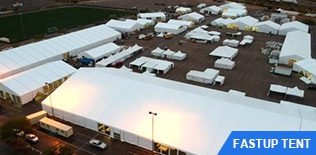

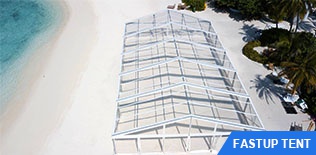

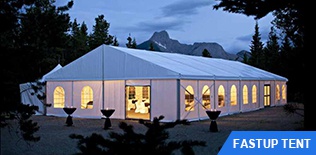

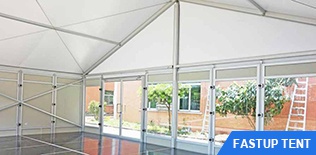

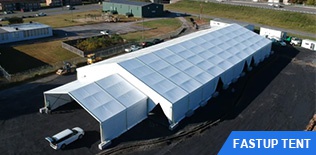

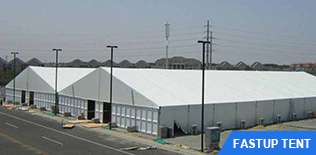

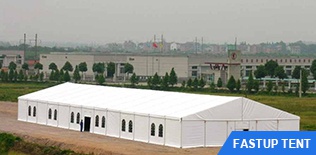

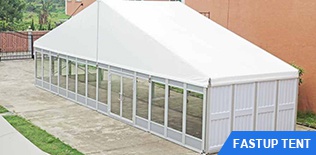

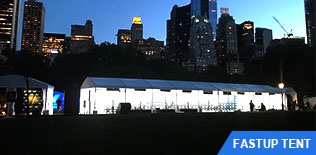

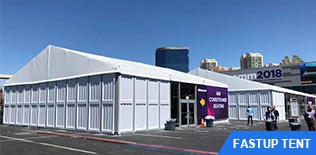

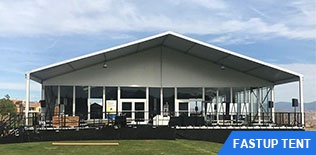

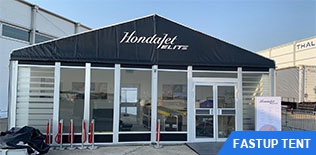

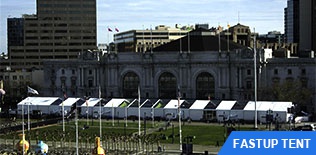

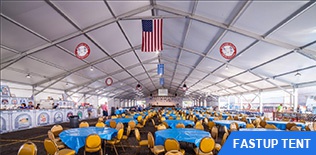

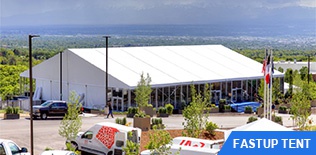

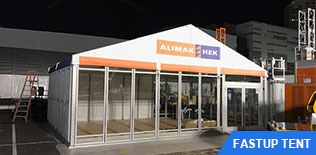

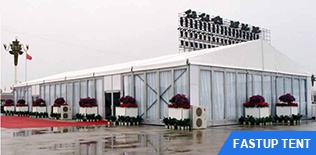

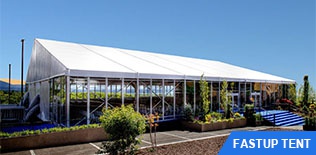

Application Case

Clear span tent popular size 3-10m Clear span tent 10-18m Clear span tent 20-50m Clear span tent More

Dimension Available

Clear span all size dimension 3-10m Clear span tent 10-18m Clear span tent 20-50m Clear span tent More

Fastup Tent Item No.	Width (m)	Truss-Distance (m)	Leg height (m)	Ridge height (m)	Truss profile size(mm)	Roof Pitch	Wind Load (km/h)	Snow Load (Kn/m2)
CP9-6/2500	6m	3m	2.5m/3m	3.7m/4.2m	84X48mm	22°	100	0.3
CP8-9/2500	9m	3m	2.5m/3m	4.2m/4.7m	100X48mm	22°	100	0.3
CP8-10/2500	10m	3m	2.5m/3m	4.52m/5.02	100X48mm	22°	100	0.3
CP6-10/3000	10m	5m	2.6m/3m/4m	4.26m/4.66m/5.66m	120X68mm 110X110mm	18°	100	0.3
CP6-12/3000	12m	5m	2.6m/3m/4m	4.58m/4.98m/5.98m	120X68mm 110X110mm	18°	100	0.3
CP5-15/3000	15m	5m	3m/3.5m/4m	5.49m/5.99m/6.49m	150X110mm	18°	100	0.3
CP3-20/4000	20m	5m	4m/5m/6m	7.31m/8.31m/9.31m	200X110mm	18°	100	0.3
AP3-20/4000	20m	5m	3.4m/4m/5.4m	6.49m/7.09m/8.49m	200X120mm	18°	120	0.3
CP3-25/4000	25m	5m	4m/5m/6m	8.12m/9.12m/10.12m	200X110mm	18°	120	0.3
Ap3-25/4000	25m	5m	3.4m/4m/5.4m	7.27m/7.87m/9.27m	200X120mm	18°	120	0.3
CP2-30/4000	30m	5m	4m/5m/6m	9m/10m/11m	250X110mm	18°	120	0.3
AP2-30/4000	30m	5m	3.4m/4m/5.4m	8.27m8.87m/10.27m	250X120mm	18°	120	0.3
AP1-40/4000	40m	5m	3.4m/4m/5.4m	9.94m/10.54m/11.94m	300X120mm	18°	120	0.3
AP1-50/4000	50m	5m	3.4m/4m/5.4m	11.57m/12.17m/13.57m	300X120mm	18°	120	0.3
APE1-50/4000	50m	5m	3.4m/4m/5.4m	11.57m/12.17m/13.57m	350X120mm	18°	120	0.3
AP10-60/4000	60m	5m	4m/5.4	13.94m/15.34m	420X120mm	18°	120	0.3

Fastup Tent Item No.	Width (m)	Truss-Distance (m)	Leg height (m)	Ridge height (m)	Truss profile size(mm)	Roof Pitch	Wind Load (km/h)	Snow Load (Kn/m2)
CP9-3/2500	3m	3m	2.5m/3m	3.13m/3.63m	84X48mm	22°	100	0.3
CP9-4/2500	4m	3m	2.5m/3m	3.33m/3.83m	84X48mm	22°	100	0.3
CP9-5/2500	5m	3m	2.5m/3m	3.5m/4m	84X48mm	22°	100	0.3
CP9-6/2500	6m	3m	2.5m/3m	3.7m/4.2m	84X48mm	22°	100	0.3
AP7-6/3000	6m	3m	2.3m/2.5m/3m	3.42m/3.62m/4.12m	120X48mm	20°	100	0.3
AP7-6/10ft	20ft	10ft	7.55ft/8.2ft/10ft	11.2ft/11.9ft/13.5ft	120X48mm	20°	100	0.3
CP9-8/2500	8m	3m	2.5m/3m	4.1m/4.6m	84X48mm	22°	100	0.3
CP8-9/2500	9m	3m	2.5m/3m	4.2m/4.7m	100X48mm	22°	100	0.3
AP7-9/3000	9m	3m	2.3m/2.5m/3m	3.95m/4.15m/4.65m	120X48mm	20°	100	0.3
AP7-9/10ft	30ft	10ft	7.55ft/8.2ft/10ft	13ft/13.6ft/15.3ft	120X48mm	20°	100	0.3
CP8-10/3000	10m	3m	2.5m/3m	4.52m/5.02m	100X48mm	22°	100	0.3
CP6-10/3000	10m	5m	2.6m/3m/4m	4.26m/4.66m/5.66m	120X68mm 110mX110m	18°	100	0.3
AP5-10/2850	10m	5m	2.85m/3.4m	4.56m/5.11m	150X120mm	18°	100	0.3
AP5-10/9.35ft	32.8ft	16.4ft	9.35ft/11.2ft	15ft/16.8ft	150X120mm	18°	100	0.3
AP3-10/4000	10m	5m	3.4m/4m/5.4m	4.92m/5.52m/6.92m	200X120mm	18°	100	0.3
AP3-10/13.1ft	32.8ft	16.4ft	11.2ft/13.1ft/17.7ft	16.1ft/18.1ft/22.7ft	200X120mm	22°	100	0.3

Fastup Tent Item No.	Width (m)	Truss-Distance (m)	Leg height (m)	Ridge height (m)	Truss profile size(mm)	Roof Pitch	Wind Load (km/h)	Snow Load (Kn/m2)
AP7-12/3000	12m	3m	2.3m/2.5m/3m	4.48m/4.68m/5.18m	120X48mm	20°	120	0.3
CP6-12/3000	12m	5m	2.6m/3m/4m	4.58m/4.98m/5.98m	120X68mm 110X110mm	18°	120	0.3
AP5-12/2850	12m	5m	2.85m/3.4m	4.88m/5.43m	150X120mm	18°	120	0.3
AP7-12/10ft	40ft	10ft	7.55ft/8.2ft/10ft	14.7ft/15.3ft/17ft	120X48mm	20°	120	0.3
AP5-12/93.5ft	40ft	16.4ft	9.35ft/11.2ft	16ft/17.8ft	150X120mm	18°	120	0.3
AP7-15/3000	15m	3m	2.3m/2.5m/3m	5.02m/5.22m/5.72m	120X48mm	20°	120	0.3
CP5-15/3000	15m	5m	3m/3.5m/4m	5.49m/5.99m/6.49m	150X110mm	18°	120	0.3
AP5-15/2850	15m	5m	2.85m/3.4m	5.37m/5.92m	150X120mm	18°	120	0.3
CP3-15/4000	15m	5m	4m/5m/6m	6.5m/7.5m/8.5m	200X110mm	18°	120	0.3
AP3-15/4000	15m	5m	3.4m/4m/5.4m	5.7m/6.3m/7.7m	200X120mm	18°	120	0.3
CP2-15/4000	15m	5m	4m/5m/6m	6.55m/7.55m/8.55m	250X110mm	18°	120	0.3
AP2-15/4000	15m	5m	3.4m/4m/5.4m	5.83m/6.43m/7.83m	250X120mm	18°	120	0.3
AP7-15/10ft	50ft	10ft	7.55ft/8.2ft/10ft	16.5ft/17.1ft/18.8ft	120X48mm	20°	120	0.3
AP5-15/9.35ft	50ft	16.4ft	9.35ft/11.2ft	17.6ft/19.4ft	150X120mm	18°	120	0.3
AP3-15/13.1ft	50ft	16.4ft	11.2ft/13.1ft/17.7ft	18.7ft/20.7ft/25.3ft	200X120mm	18°	120	0.3
AP2-15/13.1ft	50ft	16.4ft	11.2ft/13.1ft/17.7ft	19.1ft/21.1ft/25.7ft	250X120mm	18°	120	0.3
CP5-18/3000	18m	5m	3m/3.5m/4m	5.98m/6.48m/6.98m	150X110mm	18°	120	0.3

Fastup Tent Item No.	Width (m)	Truss-Distance (m)	Leg height (m)	Ridge height (m)	Truss profile size(mm)	Roof Pitch	Wind Load (km/h)	Snow Load (Kn/m2)
CP3-20/4000	20m	5m	4m/5m/6m	7.31m/8.31m/9.31m	200X110mm	18°	100	0.3
CP2-20/4000	20m	5m	4m/5m/6m	7.36m/8.36m/9.36m	250X110mm	18°	120	0.3
AP3-20/4000	20m	5m	3.4m/4m/5.4m	6.49m/7.09m/8.49m	200X120mm	18°	120	0.3
AP2-20/4000	20m	5m	3.4m/4m/5.4m	6.64m/7.24m/8.64m	250X120mm	18°	120	0.3
AP3-20/13.1ft	65.6ft	16.4ft	11.2ft/13.1ft/17.7ft	21.3ft/23.3ft/27.9ft	200X120mm	18°	120	0.3
AP2-20/13.1ft	65.6ft	16.4ft	11.2ft/13.1ft/17.7ft	21.8ft/23.8ft/28.3ft	250X120mm	18°	120	0.3
CP3-22/4000	22m	5m	4m/5m/6m	7.64m/8.64m/9.64m	200X110mm	18°	120	0.3
CP3-25/4000	25m	5m	4m/5m/6m	8.12m/9.12m/10.12m	200X110mm	18°	120	0.3
CP2-25/4000	25m	5m	4m/5m/6m	8.18m/9.18m/10.18m	250X110mm	18°	120	0.3
AP3-25/4000	25m	5m	3.4m/4m/5.4m	7.27m/7.87m/9.27m	200X120mm	18°	100	0.3
AP2-25/4000	25m	5m	3.4m/4m/5.4m	7.45m/8.05m/9.45m	250X120mm	18°	100	0.3
AP3-25/13.1ft	82ft	16.4ft	11.2ft/13.1ft/17.7ft	23.9ft/25.8ft/30.4ft	200X120mm	18°	120	0.3
AP2-25/13.1ft	82ft	16.4ft	11.2ft/13.1ft/17.7ft	24.4ft/26.4ft/31ft	250X111mm	18°	120	0.3
CP2-30/4000	30m	5m	4m/5m/6m	9m/10m/11m	250X120mm	18°	120	0.3
AP2-30/4000	30m	5m	3.4m/4m/5.4m	8.27/8.87/10.27m	250X120mm	18°	120	0.3
AP1-30/4000	30m	5m	3.4m/4m/5.4m	8.32m/8.92m/10.32m	300X120mm	18°	120	0.3
AP2-30/13.1ft	100ft	16.4ft	11.2ft/13.1ft/17.7ft	27.1ft/29.1ft/33.7ft	250X120mm	18°	120	0.3
AP1-30/13.1ft	100ft	16.4ft	11.2ft/13.1ft/17.7ft	27.3ft/29.3ft/33.8ft	300X120mm	18°	120	0.3
AP1-40/4000	40m	5m	3.4m/4m/5.4m	9.94m/10.54m/11.94m	300X120mm	18°	120	0.3
AP10-40/4000	40m	5m	4m/5.4m	10.69m/12.09m	420X120mm	18°	100	0.3
AP1-40/13.1ft	131ft	16.4ft	11.2ft/13.1ft/17.7ft	32.6ft/34.6ft/39.2ft	300X120mm	18°	120	0.3
AP10-40/13.1ft	131ft	16.4ft	13.1ft/17.7ft	35.1ft/40ft	420X120mm	18°	120	0.3
AP1-50/4000	50m	5m	3.4/m/4m/5.4m	11.57m/12.17m/13.57m	300X120mm	18°	120	0.3
APE1-50/4000	50m	5m	3.4m/4m/5.4m	11.57m/12.17m/13.57m	350X120mm	18°	120	0.3
AP10-50/4000	50m	5m	4m/5.4m	12.32m/13.72m	420X120mm	18°	120	0.3
AP1-50/13.1ft	164ft	16.4ft	11.2ft/13.1ft/17.7ft	38ft/40ft/44.5ft	300X120mm	18°	120	0.3
APE1-50/4000	164ft	16.4ft	11.2ft/13.1ft/17.7ft	38ft/40ft/44.5ft	350X127mm	18°	120	0.3
AP10-50/13.1ft	164ft	16.4ft	13.1ft/17.7ft	40.4ft/45ft	420X120mm	18°	120	0.3
AP10-60/4000	60m	5m	4m/5.4m	13.94m/15.34m	420X120mm	18°	120	0.3
AP10-60/13.1ft	200ft	16.4ft	13.1ft/17.7ft	45.7ft/50.3ft	420X120mm	18°	120	0.3

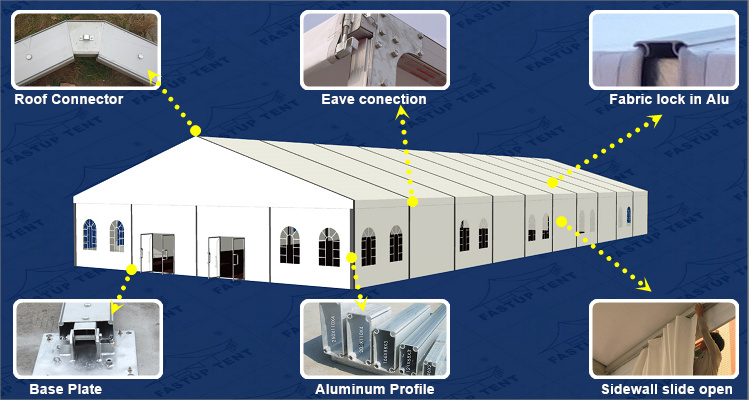

Material and Quality

FRAME	Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER	850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDE WALL	650g/sqm or 850g/sqm PVC; Glass Pannel sidewall, ABS sidewall, Sandwich Wall
CONNECTION	Hot Dipped Galvanized Steel Connector, Aluminum roof connection
