Aluminum frame Mecca Hajj tent from Fastup Tent

Aluminum frame Mecca Hajj tent from Fastup Tent

Mecca is called as the city of tents, as it has more than 100,000 air-conditioned tents to provide temporary accommodation to 3 million pilgrims visiting to take part in Hajj.
Hajj tent structure is PVC aluminum frame, side wall covering wall covering can choose PVC side wall or glass walls, transparent type of ABS wall.
Interior decoration according to religious needs, high-quality tents, such as lining, curtain, lighting, floor, carpet, etc.


Mecca Hajj tent all size dimension

Fastup Tent
Item No.

Dimension

Side height (m)

Peak height (m)

 Main frame profile
(mm)

Wind Load (km/h)

Snow Load (Kn/m2)

SPD3/2500

3m x 3m

2.5m

 4.2m

 65X65mm

80

0.4

SPD4/2500

4mx 4m

2.5m

4.8m

 65X65mm

80

0.4

SPD5/2500

5mx 5m

2.5m

5.2m

 65X65mm

80

0.4

SPD6/2500

6m x6m

2.5m

5.8m

 65X65mm

80

0.4

SPD8/2500

6m x 6m

2.5m

5.4m

 65X65mm

100

0.3

SPD10/2500

10m x 10m

2.5m

6.4m

122X68mm

100

0.3

SPD15/2500

15m x15m

3m

8.1m

122X68mm

100

0.3




Material and Quality

FRAME Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER 850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDEWA 650g/sqm or 850g/sqm PVC; Glass Pannel sidwall, ABS sidewall, Sandwich Wall
CONNECTION Hot Dip Gavanized Steel Connector, Aluminum roof connection

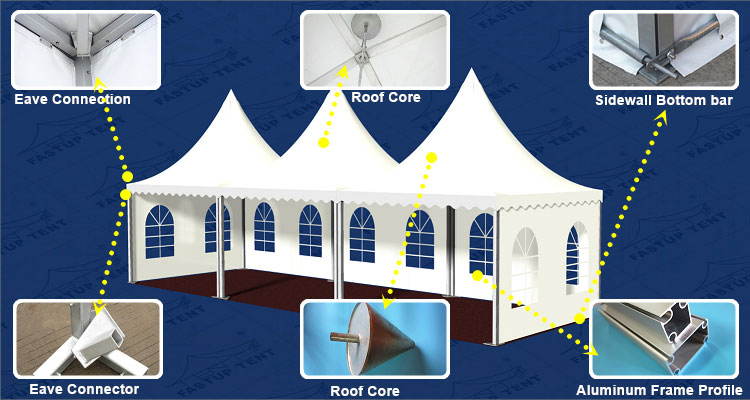

Structure details
