Hexagon tent

Hexagon tent

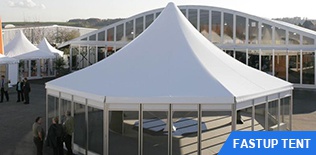

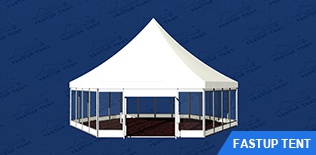

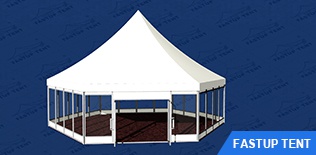

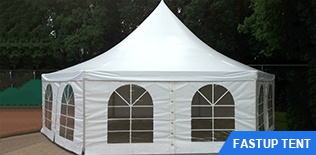

Hexagon tent is a upgrade design on the basis of square pagoda tent. It is 6 sides while square pagoda tent only 4 sides. Fastup Tent Hexagon Tent could be 6m diameter, 8m diameter, 10m diameter and 12m diameter.

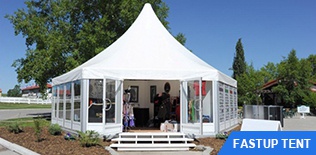

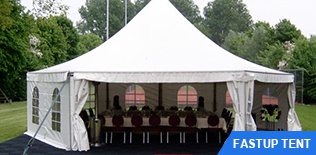

Fastup High Peak Hexagon tent could be used for restaurant tent, shop tent, event tent, exhibition tent.

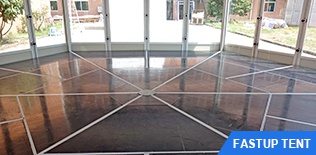

The available accessories to enhance the appearance for Hexagon tent: ceiling & drapes, glass wall, glass door, Sandwich wall, Cassette wooden floor system.

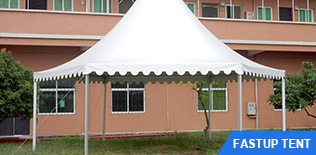

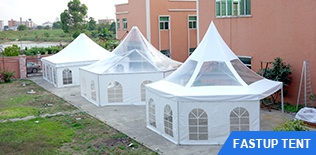

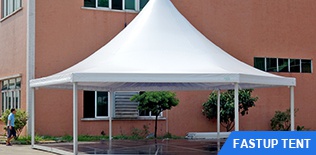

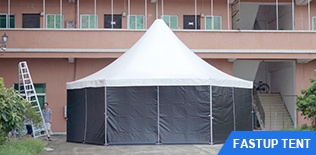

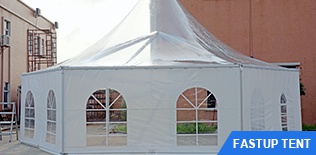

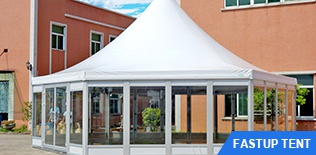

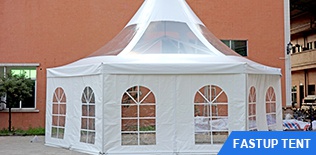

Test Instalation in Our Factory

Dimension Available

Fastup Tent Item No. Width (m) Bay Distance (m) Side height (m) Ridge height (m) Main frame profile(mm) Wind Load (km/h) Snow Load (Kn/m2)
HEX6/2500 φ6m 3m 2.5m 5m 100X48mm 100 0.4
HEX8/2500 φ8m 4m 2.5m 5.7m 100X48mm 100 0.4
HEX10/2500 φ10m 5m 2.5m 6.3m 122X68mm 100 0.4
HEX12/2500 φ12m 6m 2.5m 7.1m 122X68mm 100 0.4
OTC15/2500 φ15m 5.74m 3m 8m 166X88mm 100 0.4
DEC20/3000 φ20m 6.18m 4m 10m 204X112mm 100 0.4

Material and Quality


FRAME Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER 850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDE WALL 650g/sqm or 850g/sqm PVC; Glass Pannel sidewall, ABS sidewall, Sandwich Wall
CONNECTION Hot Dipped Galvanized Steel Connector, Aluminum roof connection

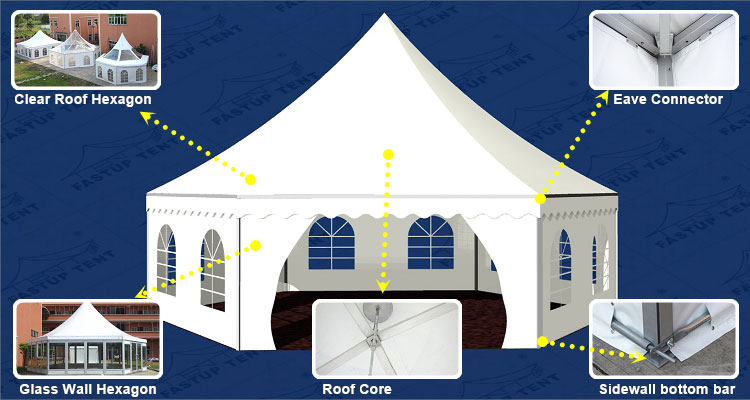

Structure Details

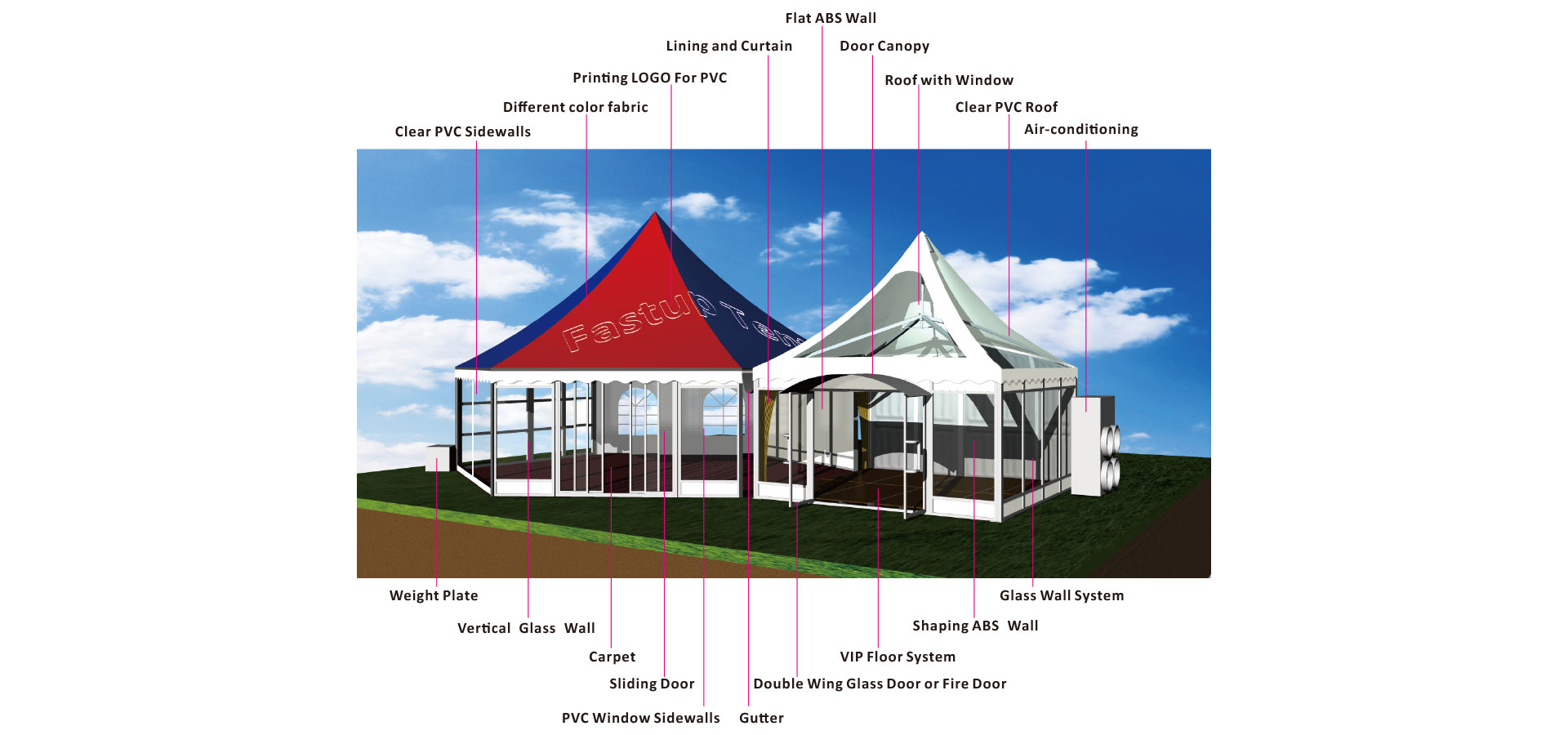

Optional Accessories
