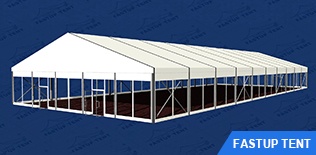

20m 30m 40m 50m clear span tent

20m 30m 40m 50m clear span tent

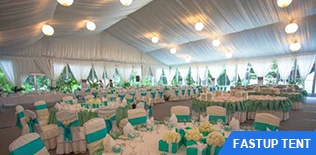

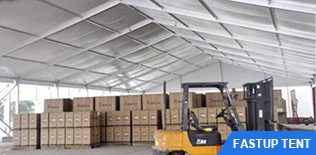

Our Party tent are widely used for wedding, party, events, exhibitions,storage,sport events ect. Full line accessories are available, such as glass wall system, glass door system, flooring system, and so on. It is widely used for different occassions, inlcuding wedding, party, banquet,and event sports event.

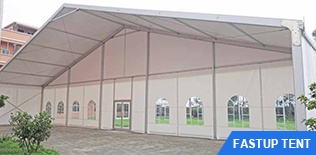

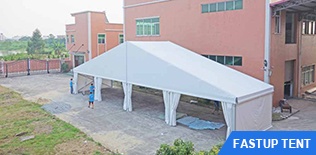

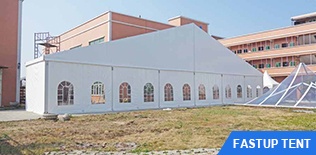

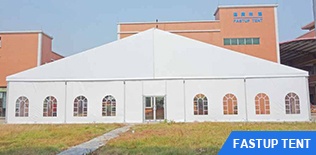

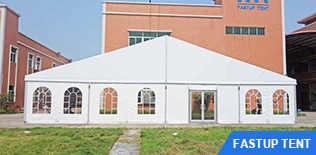

Test Instalation in Our Factory

Dimension Available

Fastup Tent Item No. Width (m) Bay Distance (m) Side height (m) Ridge height (m) Main frame profile(mm) Roof Pitch Wind Load (km/h) Snow Load (Kn/m2)
LPT20/4000 20m 5m 4m 7.2m 203X110mm 18° 120 0.3
LPT22/4000 22m 5m 4m 7.45m 203X110mm 18° 120 0.3
LPT25/4000 25m 5m 4m 7.95m 250X111mm 18° 120 0.3
LPT30/4000 30m 5m 4m 8.7m 256X113.5mm 18° 120 0.3
LPT35/4000 35m 5m 4m 9.5m 300X125mm 18° 120 0.3
LPT40/4000 40m 5m 4m 10.2m 300X125mm 18° 120 0.3
LPT45/4000 45m 5m 4m 11m 350X127mm 18° 120 0.3
LPT50/4000 50m 5m 4m 11.95m 350X127mm 18° 120 0.3
LPT60/4000 60m 5m 4m 13.5m 60X48mm 18° 120 0.3

Material and Quality


FRAME Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER 850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDE WALL 650g/sqm or 850g/sqm PVC; Glass Pannel sidewall, ABS sidewall, Sandwich Wall
CONNECTION Hot Dipped Galvanized Steel Connector, Aluminum roof connection

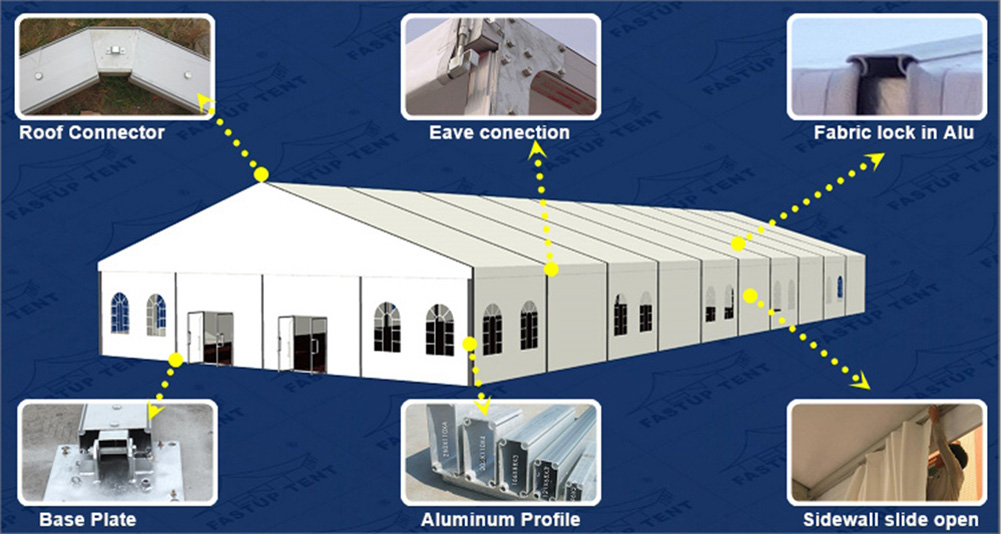

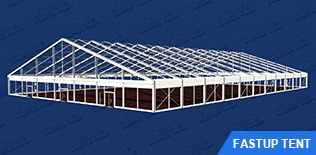

Structure Details

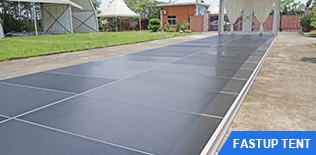

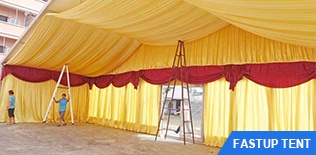

Optional Accessories
